Unit · BASE UNIT
BASE UNITR902561624
Base unit Bosch Rexroth, type code BASEUNIT, material number R902561624.
- Number
- R902561624
- Type code
- BASE UNIT
- Group
- BASE UNIT
- Edition
- 06/2020

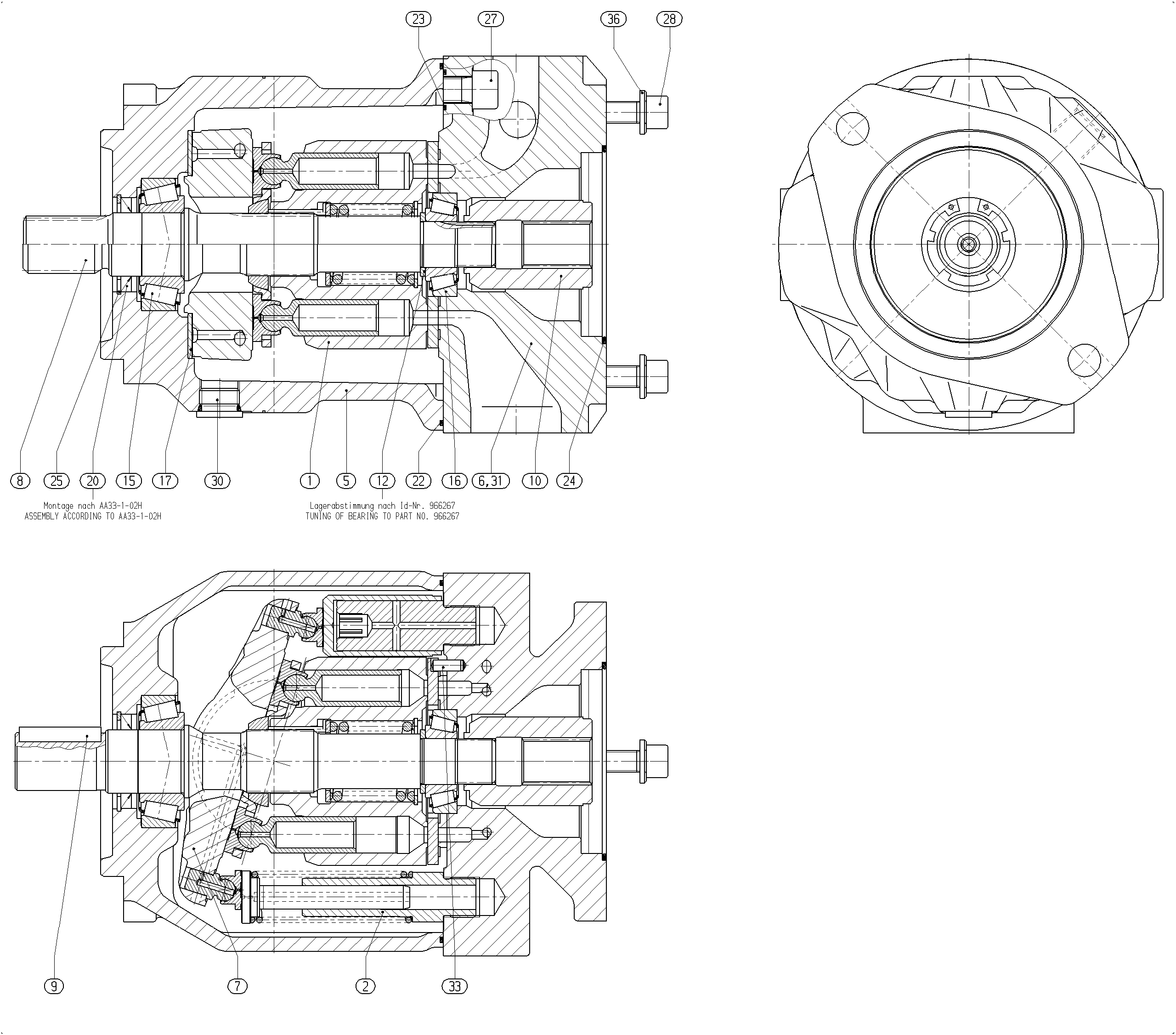

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910911929 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910910873 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910910663 | PUMP HOUSING | 1 | ||
| R902542704 | CONNECTION PLATE | 1 | ||
| R910961020 | SWASH PLATE | 1 | ||
| R902412024 | DRIVE SHAFT | 1 | ||
| R902436200 | SPLINED COUPLING | 1 | ||
| R910939005 | ADJUSTMENT SHIM | 1 | ||
| R910720224 | TAPERED-ROLLER BEARING | 1 | ||
| R910720232 | TAPERED-ROLLER BEARING | 1 | ||
| R910902777 | BEARING SHELL | 2 | ||
| R910764701 | SHAFT SEALING RINGD | 1 | ||
| R910764728 | O-RINGD | 1 | ||
| R913052117 | R-RINGD | 4 | ||
| R910357049 | O-RINGD | 1 | ||
| R910941918 | RETAINING RING | 1 | ||
| R910110272 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156654 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
