Unit · BASE UNIT
BASE UNITR902562006
Base unit Bosch Rexroth, type code BASEUNIT, material number R902562006.
- Number
- R902562006
- Type code
- BASE UNIT
- Group
- BASE UNIT
- Edition
- 06/2020

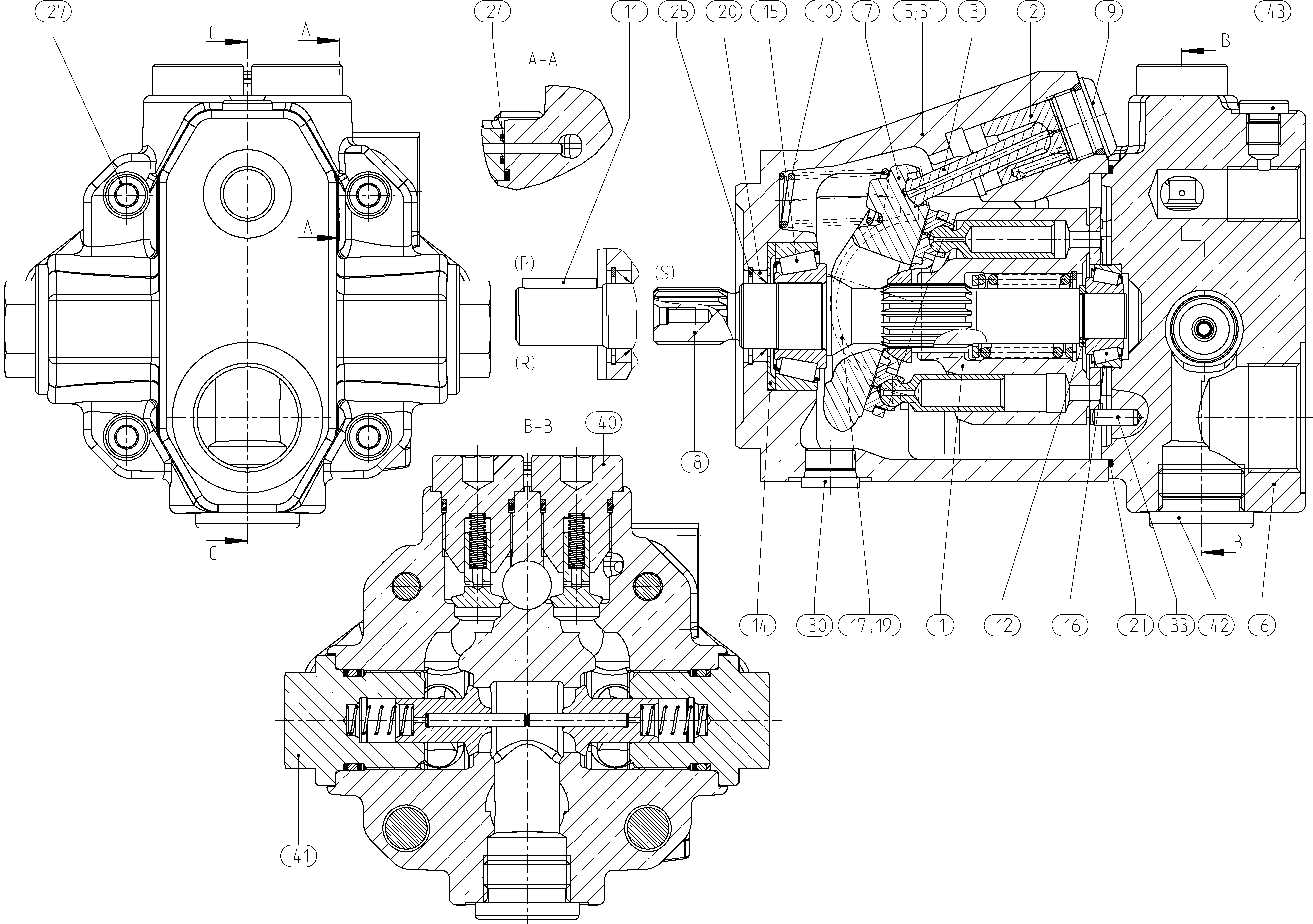

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902459787 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902438263 | ADJUSTING PISTON | 1 | ||
| R902439967 | PISTON ROD | 1 | ||
| R902513212 | PUMP HOUSING | 1 | ||
| R902460353 | CONNECTION PLATE | 1 | ||
| R902443524 | SWASH PLATE | 1 | ||
| R902417366 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910947314 | COMPRESSION SPRING | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| R910987890 | STOP RING | 1 | ||
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R902416852 | BEARING SHELL | 2 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 2 | ||
| R910988019 | SHAFT SEALING RINGD | 1 | ||
| R902650851 | O-RINGD | 1 | ||
| R910942133 | R-RINGD | 1 | ||
| R902403815 | RETAINING RING | 1 | ||
| R910121266 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R902402125 | ANTI-CAVITATION CHECK VALVE Assembly parts list →L | 2 | ||
| R902459834 | ANTI-CAVITATION CHECK VALVE Assembly parts list →L | 2 | ||
| R913011613 | SCREW PLUG | 1 | ||
| R913011609 | SCREW PLUG | 1 |
