Unit · BASE UNIT
BASE UNITR902561374
Base unit Bosch Rexroth, type code BASEUNIT, material number R902561374.
- Number
- R902561374
- Type code
- BASE UNIT
- Group
- BASE UNIT
- Edition
- 06/2020

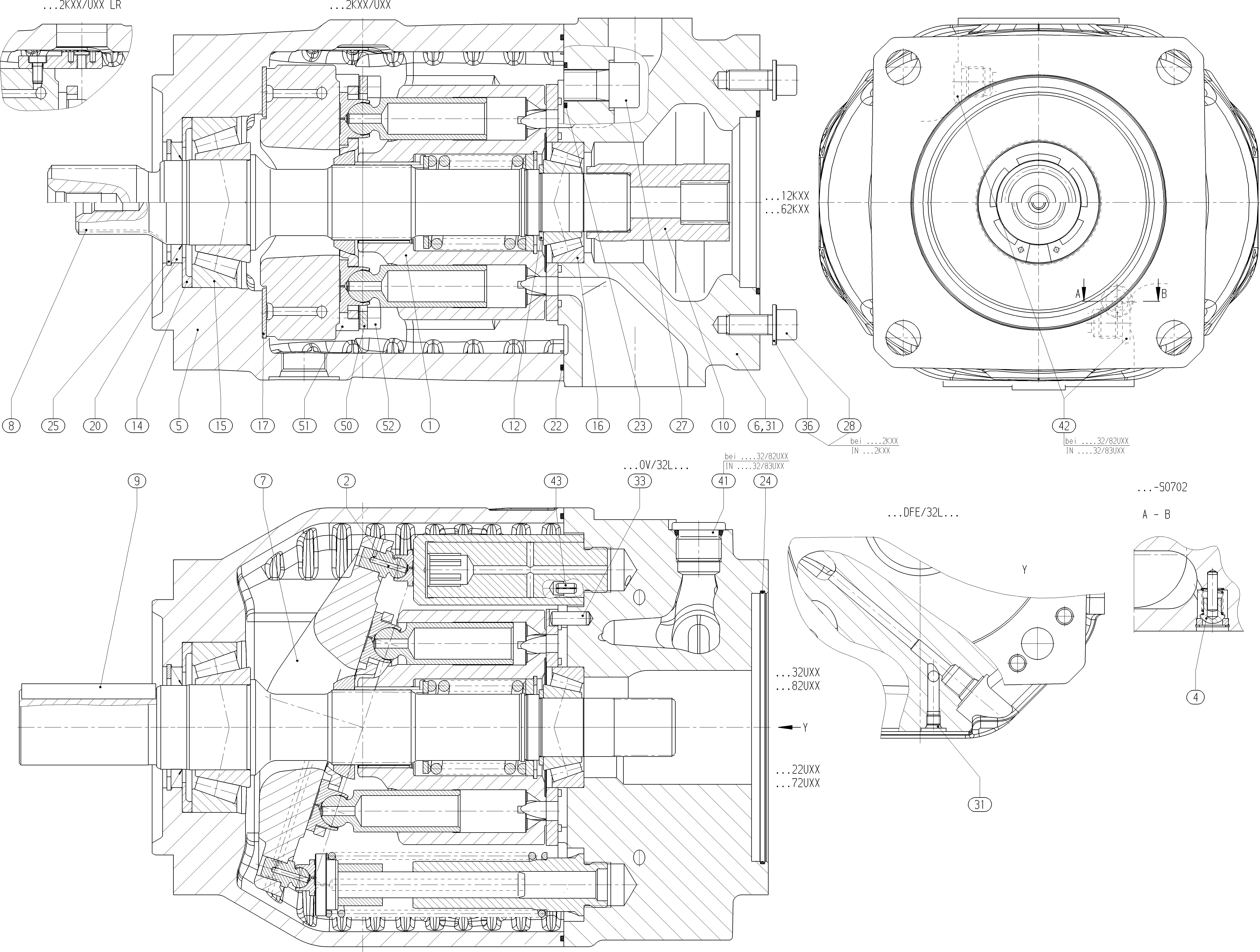

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902560504 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902561377 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902560973 | PUMP HOUSING | 1 | ||
| R902551309 | CONNECTION PLATE | 1 | ||
| R902561376 | SWASH PLATE | 1 | ||
| R902561776 | DRIVE SHAFT | 1 | ||
| R902425273 | ADJUSTMENT SHIM | 1 | ||
| R902446966 | STOP RING | 1 | ||
| R910918203 | TAPERED-ROLLER BEARING | 1 | ||
| R902650949 | TAPERED-ROLLER BEARING | 1 | ||
| R902453958 | BEARING SHELL | 2 | ||
| 18 | R910993660 | COUNTERSUNK-HEAD SCREW | 2 | |
| R909831178 | SHAFT SEALING RINGD | 1 | ||
| R910930461 | O-RINGD | 1 | ||
| R913053032 | R-RINGD | 4 | ||
| R909156462 | O-RINGD | 1 | ||
| R910941920 | RETAINING RING | 1 | ||
| R910659169 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910922017 | STRAIGHT PIN | 1 | ||
| R902601712 | SCREW PLUG | 2 | ||
| R902601709 | SCREW PLUG | 2 | ||
| R900002645 | SLOTTED SPRING PIN | 1 | ||
| R902570110 | SEGMENT | 2 | ||
| R902493284 | SPACER SLEEVE | 4 | ||
| R902530617 | SOCKET HEAD CAP SCREW | 4 |
