Unit · AXIAL-PISTON PUMP
AA4VG125HD/3-424592*G*R909424592
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG125HD/3-424592*G*, material number R909424592. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Working port: SAE working port A and B, on right side (45° right) (2). Pressure sensor: pressure sensors at the measuring ports MA and MB (high pressure) (4).
- Number
- R909424592
- Type code
- AA4VG125HD/3-424592*G*
- Group
- A4VG 125
- Edition
- 03/2020

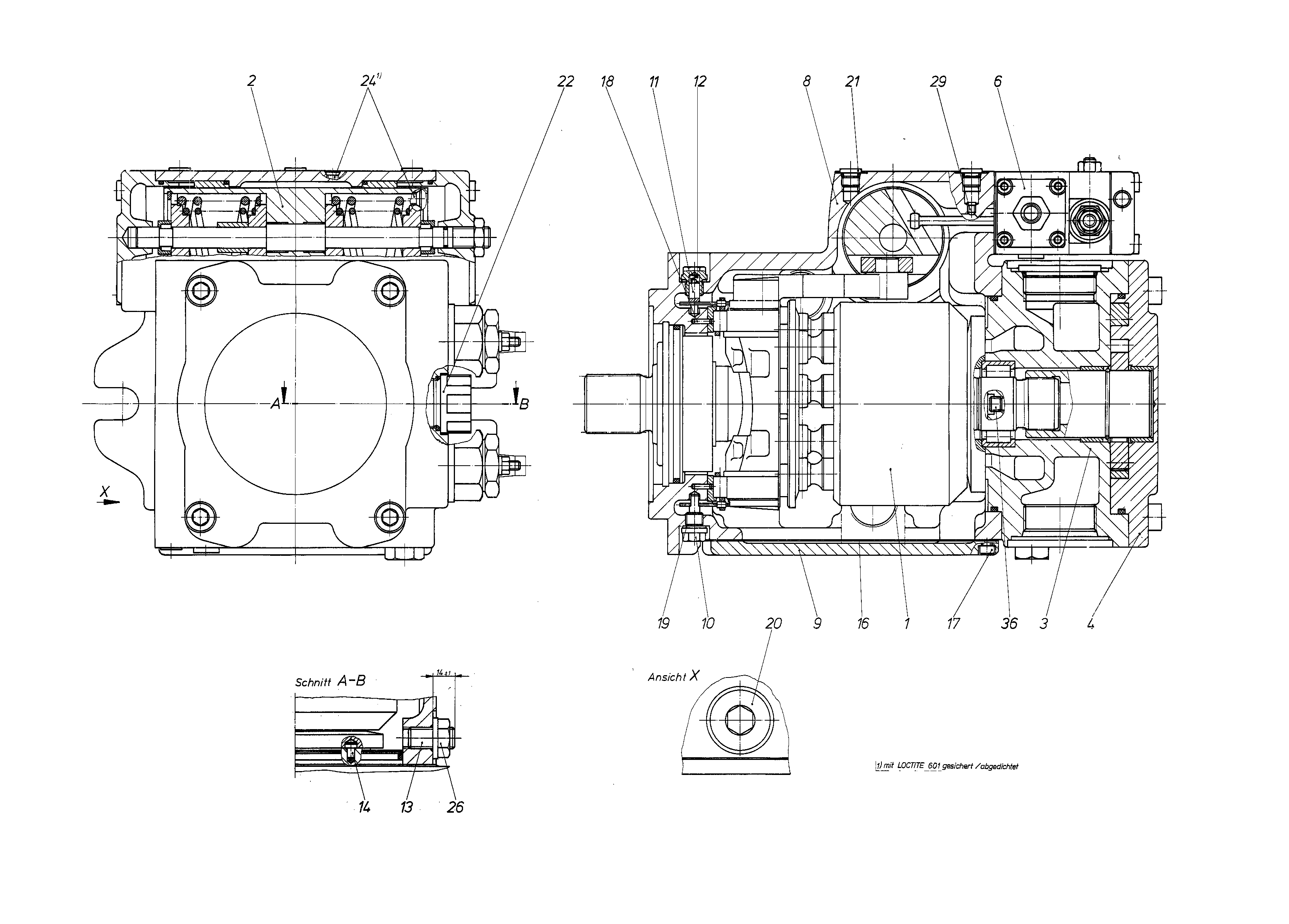

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909428497 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909422827 | CONTROL Assembly parts list →L | 1 | ||
| R909424150 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909424109 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909424848 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909431246 | HOUSING | 1 | ||
| R909430992 | HOUSING COVER | 1 | ||
| R909414228 | SCREW PLUG | 2 | ||
| R909414227 | PIVOT PIN | 2 | ||
| R909002380 | COMPRESSION SPRING | 2 | ||
| R909157393 | SETSCREW | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909431042 | SEALD | 1 | ||
| R909083019 | SOCKET HEAD CAP SCREW | 1 | ||
| R913016374 | SLOTTED SPRING PIN | 2 | ||
| R909152726 | SEAL RINGD | 1 | ||
| R909153378 | SCREW PLUGD | 3 | ||
| R909154478 | SCREW PLUGD | 5 | ||
| R909422926 | LOCKING PIECE Assembly parts list →L | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909152975 | SEALING NUTD | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R909084792 | SCREW PLUG | 1 | ||
| 43 | R909157392 | SCREW PLUGD | 2 | |
| 48 | R909083036 | SOCKET HEAD CAP SCREW | 10 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Working port | SAE working port A and B, on right side (45° right) | 2 |
| Pressure sensor | Pressure sensors at the measuring ports MA and MB (high pressure) | 4 |
