Unit · AXIAL-PISTON PUMP
AA4VG125HD/30R-433411*G*R909433411
Axial piston pump Bosch Rexroth series A4VG, type code AA4VG125HD/30R-433411*G*, material number R909433411. Nominal size: NG 125. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). DA control valve (only for NG110 and 125): without DA control valve (0). Direction of rotation: viewed on drive shaft clockwise (R). Pressure sensor: pressure sensors at the measuring ports MA and MB (high pressure) (4).
- Number
- R909433411
- Type code
- AA4VG125HD/30R-433411*G*
- Group
- A4VG 125
- Edition
- 03/2020

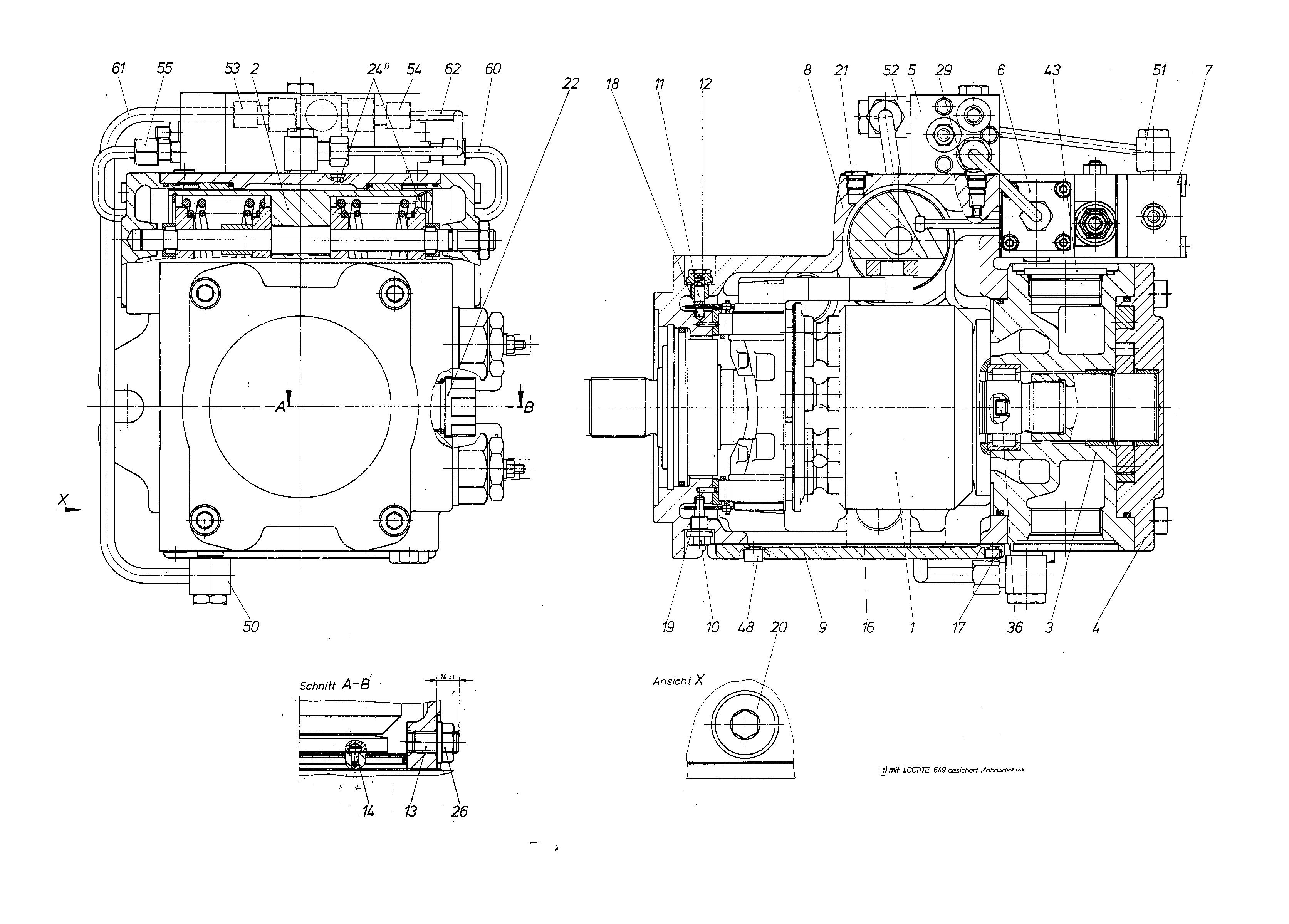

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909428497 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909422827 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909433412 | CONNECTION PLATE Assembly parts list →L | 1 | |
| R909424109 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| 5 | R909433084 | SEQUENCE VALVE Assembly parts list →L | 1 | |
| R909433103 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909433100 | SENSING DEVICE Assembly parts list →L | 1 | ||
| R909432437 | HOUSING | 1 | ||
| R909430992 | HOUSING COVER | 1 | ||
| 10 | R909414228 | SCREW PLUG | 2 | |
| 11 | R909414227 | PIVOT PIN | 2 | |
| R909002380 | COMPRESSION SPRING | 2 | ||
| 13 | R909157393 | SETSCREW | 1 | |
| 14 | R909405732 | POITIONING PIN | 1 | |
| R909431042 | SEALD | 1 | ||
| R909083019 | SOCKET HEAD CAP SCREW | 4 | ||
| R913016374 | SLOTTED SPRING PIN | 2 | ||
| R909152726 | SEAL RINGD | 2 | ||
| 20 | R909153378 | SCREW PLUGD | 3 | |
| R909154478 | SCREW PLUGD | 5 | ||
| R909422926 | LOCKING PIECE Assembly parts list →L | 1 | ||
| 24 | R909831319 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909152975 | SEALING NUTD | 1 | ||
| 29 | R909156493 | NOZZLE | 2 | |
| 36 | R909084792 | SCREW PLUG | 1 | |
| R909157392 | SCREW PLUGD | 1 | ||
| 48 | R909083036 | SOCKET HEAD CAP SCREW | 10 | |
| R909156779 | THREADED FASTENER Assembly parts list →L | 1 | ||
| 51 | R902034832 | THREADED FASTENER Assembly parts list →L | 1 | |
| 52 | R909087846 | THREADED FASTENER | 1 | |
| 53 | R909150354 | THREADED FASTENER | 1 | |
| 54 | R909086542 | THREADED FASTENER | 1 | |
| R909154578 | THREADED FASTENER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 125 | 125 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Pressure sensor | Pressure sensors at the measuring ports MA and MB (high pressure) | 4 |
