Unit · AXIAL-PISTON PUMP
A11VG19HW1/11R-PSC16F001S-SR909442460
Axial piston pump Bosch Rexroth series A11VO, type code A11VG19HW1/11R-PSC16F001S-S, material number R909442460. Nominal size: NG 19. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C). Standard/special version: special version (S).
- Number
- R909442460
- Type code
- A11VG19HW1/11R-PSC16F001S-S
- Group
- A11VG 19
- Edition
- 06/2020

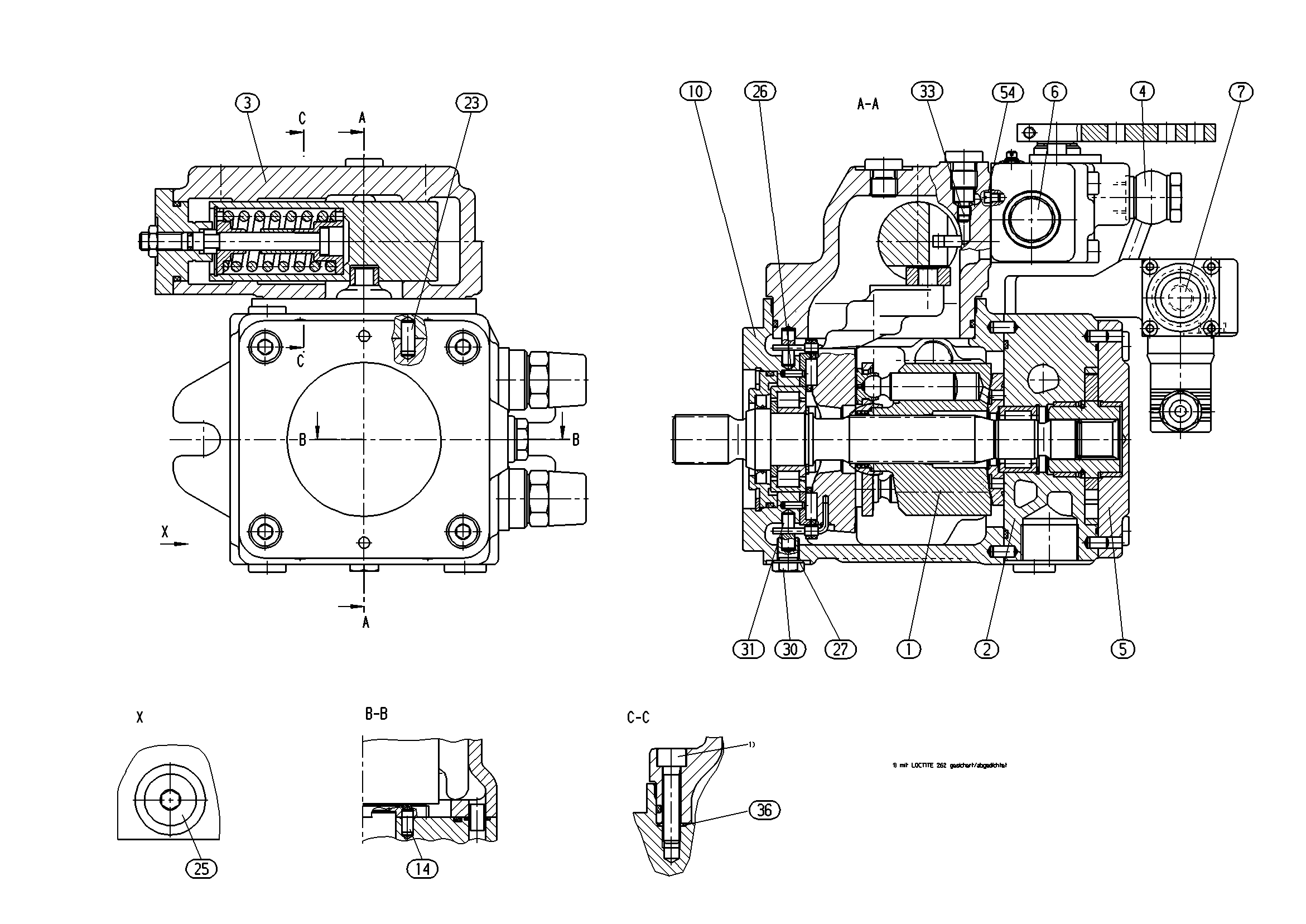

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909441297 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909438767 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909442699 | CONTROL Assembly parts list →L | 1 | ||
| R909446199 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909419541 | INTERNAL GEAR PUMP ASSEMBLY Assembly parts list →L | 1 | ||
| R909071574 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909441256 | UNLOADING VALVE Assembly parts list →L | 1 | ||
| R909445912 | HOUSING | 1 | ||
| R913009664 | STRAIGHT PIN | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R913017227 | SLOTTED SPRING PIN | 2 | ||
| R909152725 | SEAL RINGD | 1 | ||
| R909436089 | SCREW PLUG | 1 | ||
| R909436088 | PIVOT PIN | 2 | ||
| R909156491 | NOZZLE | 2 | ||
| R909831147 | O-RINGD | 4 | ||
| R902601866 | NOZZLE | 1 | ||
| 98 | R902095944 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 19 | 19 |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
| Standard/special version | Special version | S |
