HA10VO100DFR1/31R+HA10VO100DFR1/31R (R902449947)

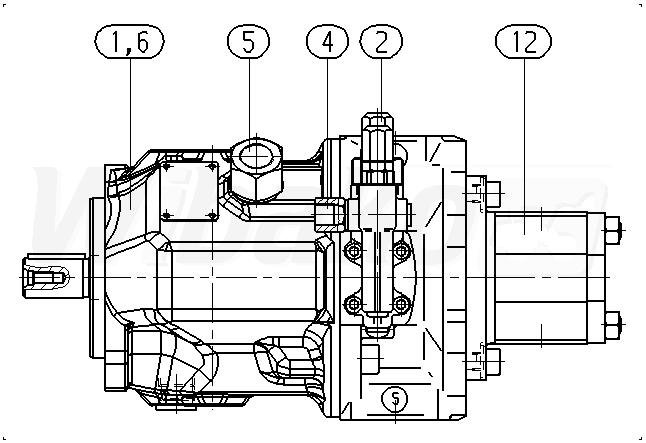

AXIAL-PISTON PUMP (148406)

AXIAL-PISTON PUMP
(148406)


1

BASE UNIT
(148407)

Group »


2

CONTROL VALVE
(20837)

Group »


4

ADAPTER
(14533)

Group »


5

ADAPTER
(30933)

Group »


6

SIDE MARKER RING
(105229)


12

HYDRAULIC GEAR PUMP


61

SOCKET HEAD CAP SCREW
(14121)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
