LA10VO60DFR1/52L+LA10VO45ED71/31L (R902504337)

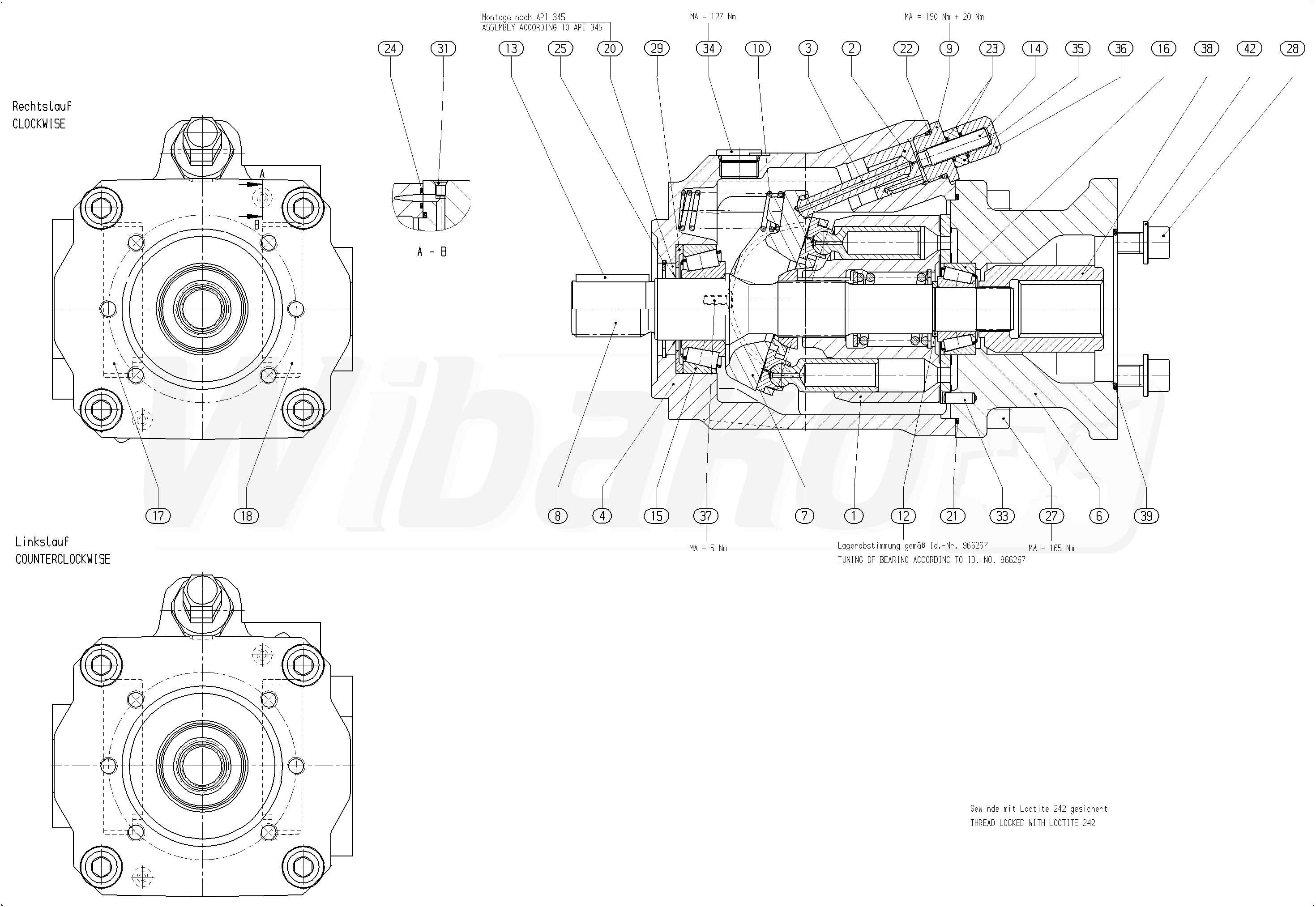

BASE UNIT (20479)

BASE UNIT
(20479)


1

ROTARY GROUP
(13848)

Group »


2

ADJUSTING PISTON
(11875)


3

PISTON ROD
(13290)


4

PUMP HOUSING
(14396)


6

CONNECTION PLATE
(20618)


7

SWASH PLATE
(13852)


8

DRIVE SHAFT
(20619)


9

SCREW PLUG
(20620)


10

COMPRESSION SPRING
(13296)


11

SPLINED COUPLING
(19885)


12

ADJUSTMENT SHIM
(13297)


14

STOP SCREW
(15983)


15

TAPERED-ROLLER BEARING
(13299)


16

TAPERED-ROLLER BEARING
(13300)


17

BEARING SHELL
(13301)


18

BEARING SHELL
(13302)


20

SHAFT SEALING RING
(10968)


21

O-RING
(27111)


22

O-RING
(16233)


23

O-RING
(15835)


24

R-RING
(11889)


25

RETAINING RING
(13303)


27

SOCKET HEAD CAP SCREW
(13304)


29

STOP RING
(13298)


31

DOUBLE BREAK-OFF PLUG
(18990)


33

STRAIGHT PIN
(11892)


34

SCREW PLUG
(13231)


35

NUT
(15839)


36

CAP NUT
(15840)


37

COUNTERSUNK-HEAD SCREW
(13305)


39

O-RING
(14400)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
