LA10VO60DFR1/52R+LA10VO18 DR /31R (R902453156)

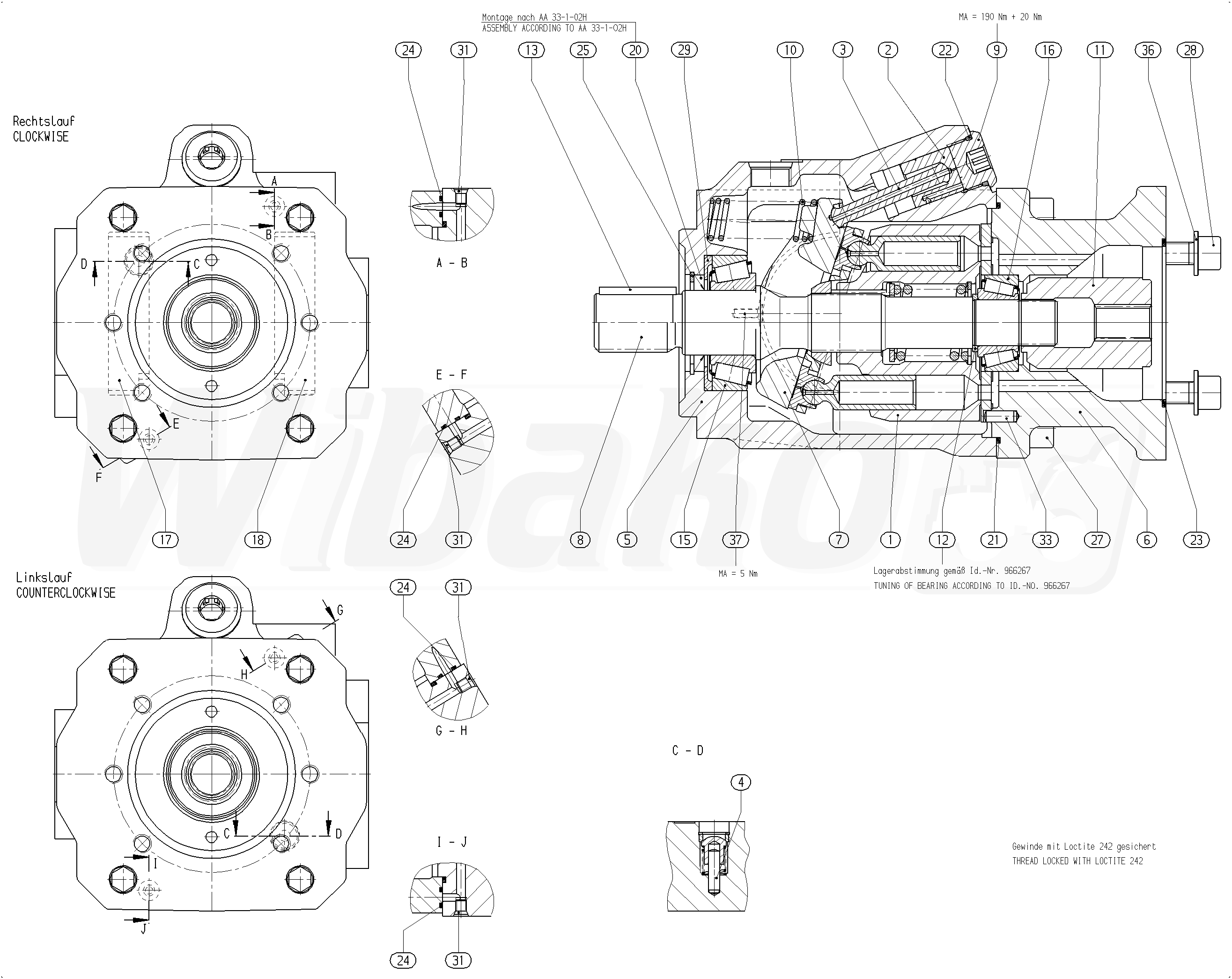

BASE UNIT (115084)

BASE UNIT
(115084)


1

ROTARY GROUP
(13289)

Group »


2

ADJUSTING PISTON
(11875)


3

PISTON ROD
(13290)


4

CHECK VALVE
(14395)


5

PUMP HOUSING
(14396)


6

CONNECTION PLATE
(115085)


7

SWASH PLATE
(13293)


8

DRIVE SHAFT
(14398)


9

SCREW PLUG
(11881)

Group »


10

COMPRESSION SPRING
(13296)


11

SPLINED COUPLING
(14347)


12

ADJUSTMENT SHIM
(13297)


15

TAPERED-ROLLER BEARING
(13299)


16

TAPERED-ROLLER BEARING
(13300)


17

BEARING SHELL
(13301)


18

BEARING SHELL
(13302)


20

SHAFT SEALING RING
(10968)


21

O-RING
(27111)


23

O-RING
(13856)


24

R-RING
(11889)


25

RETAINING RING
(13303)


27

SOCKET HEAD CAP SCREW
(13304)


29

STOP RING
(13298)


31

DOUBLE BREAK-OFF PLUG
(18990)


33

STRAIGHT PIN
(11892)


37

COUNTERSUNK-HEAD SCREW
(13305)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
