AA6VM250HD1D/63W1-VZB088B-SO40 (R910988901)

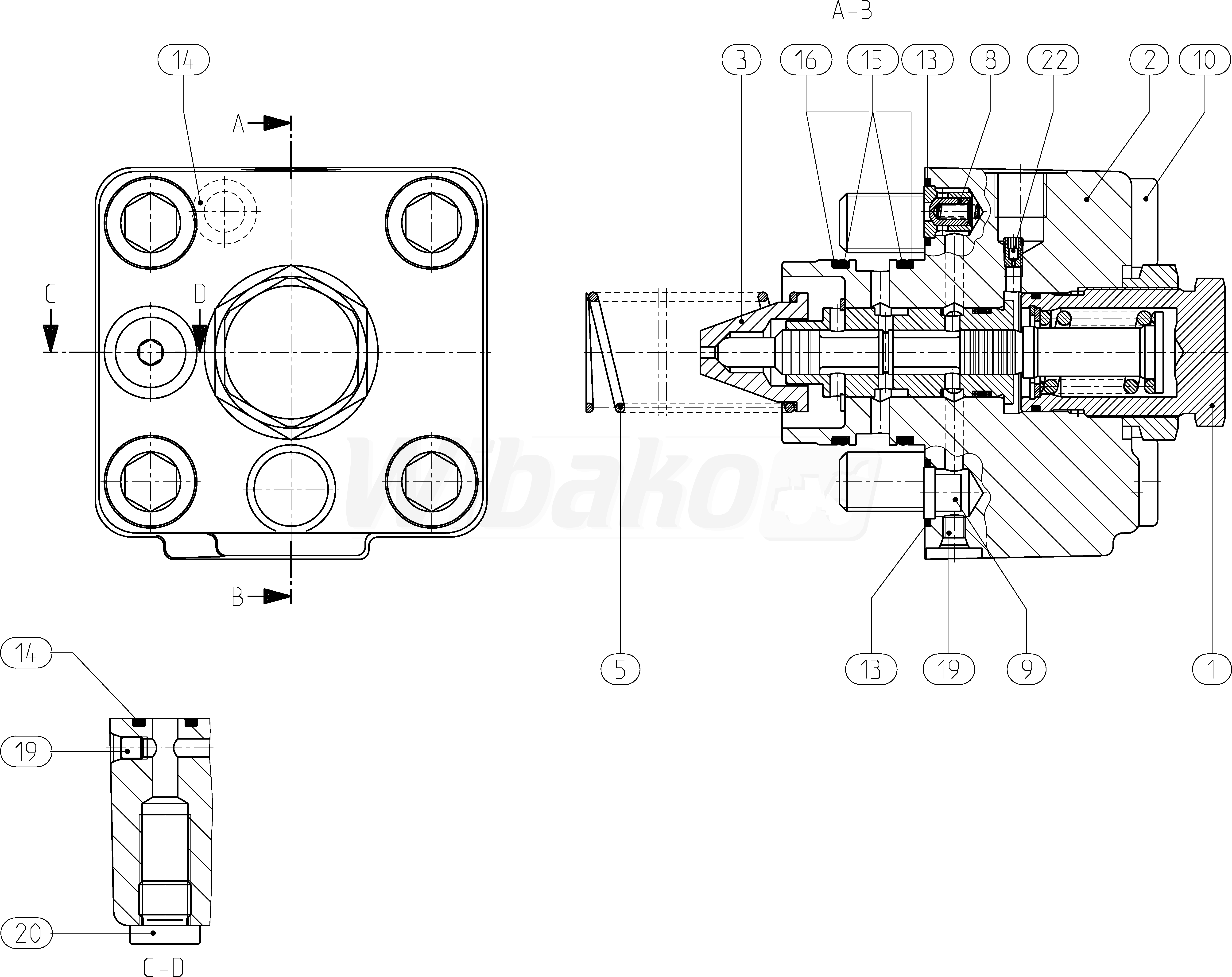

CONTROL PART (163655)

CONTROL PART
(163655)


1


(14262)


2


(14263)


3


(14264)


5


(14265)


8


(14266)


9


(18324)


10


(14267)


13


(14268)


14


(14269)


15

O-RING
(14270)


16

BACKUP RING
(14271)


19

DOUBLE BREAK-OFF PLUG
(18990)


20

SCREW PLUG
(11348)


22

NOZZLE
(14272)


1

VALVE INSERT
(14262)


2

CONTROL HOUSING
(14263)


3

SPRING DISK
(14264)


5

COMPRESSION SPRING
(14265)


8

HY-CHECK VALVE
(14266)


9

PLUG
(18324)


10

SOCKET HEAD CAP SCREW
(14267)


13

O-RING
(14268)


14

O-RING
(14269)
