AA6VM250HD3D/63W2-VSB080B-SO186 (R902448389)
Axial piston variable motor A6VM Series 63. Geometric displacement 250 cm3. Control device: proportional control, hydraulic, Setting ranges for displacement: Vg min = 0.4 to 0.8 Vg max Vg max = Vg max to 0.8 Vg max. Sealing material: FKM (fluoroelastomer). Splined shaft ANSI B92.1a. Mounting flange ISO 3019-2, 4-hole. Port plate for working line: without valve. Beginning of control at Vg max. Special version.

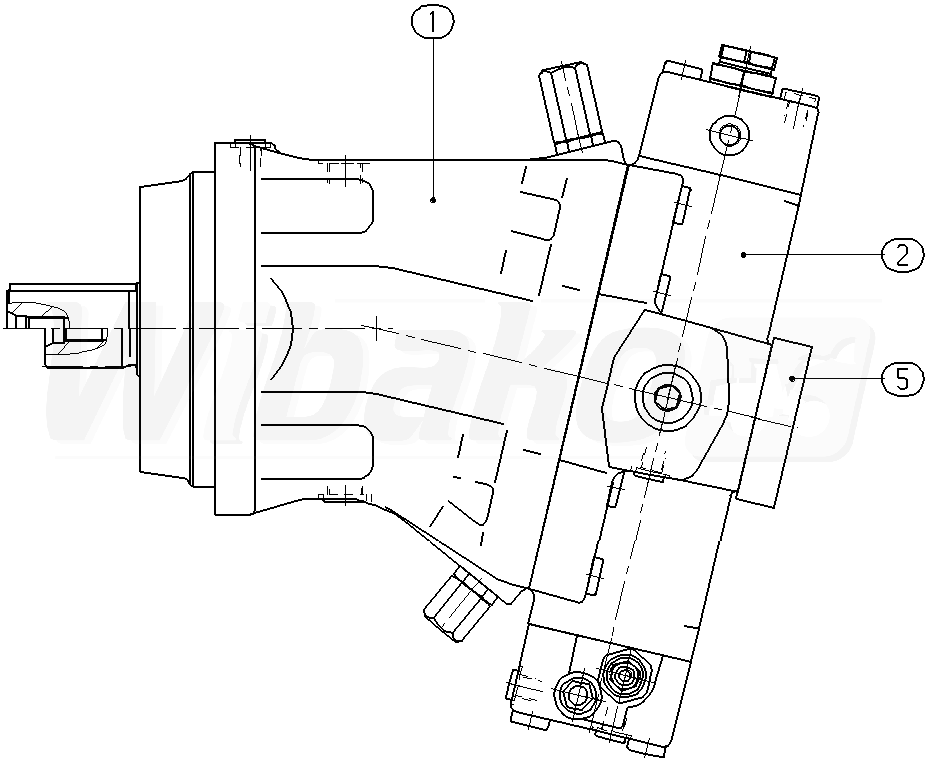

The above diagrams belong to Rexroth www.boschrexroth.com
