AA6VM250MA/61W-PZB020A (R910912040)

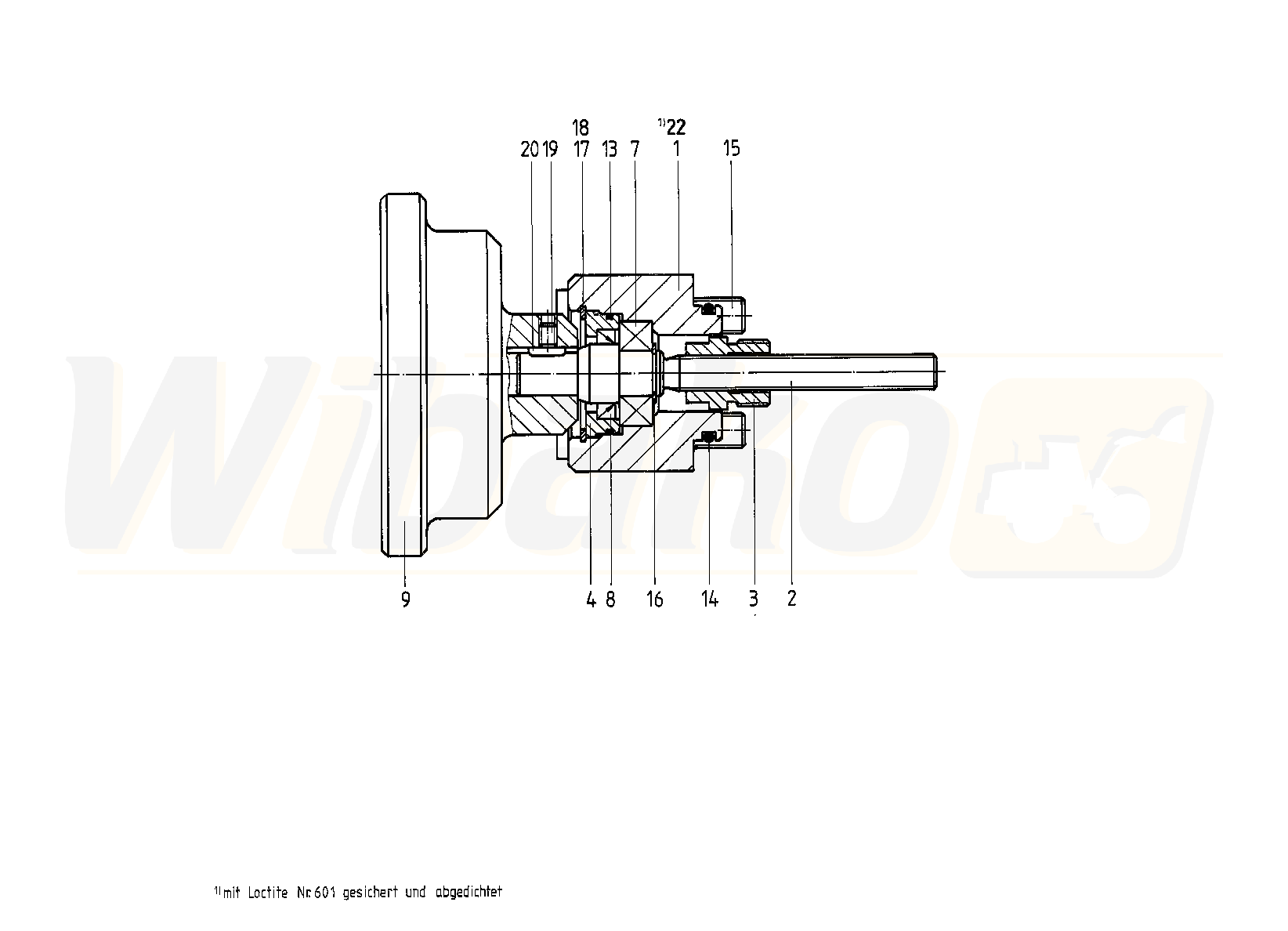

CONTROL PART (164081)

CONTROL PART
(164081)


1

CONTROL HOUSING
(164085)


2

ADJUSTMENT SPINDLE
(164086)


3

THREADED BUSHING
(164087)


4

LOCKING RING
(164088)


7

DEEP-GROOVE BALL BEARING
(164089)


8

ROTARY SHAFT LIP SEAL
(164090)


9

HANDWHEEL
(164091)


13

O-RING
(101380)


14

O-RING
(17785)


15

SOCKET HEAD CAP SCREW
(164092)


16

RETAINING RING
(164093)


17

RETAINING RING
(54960)


18

SHIM RING
(17649)


19

SETSCREW
(164094)


20

PARALLEL KEY
(164095)


22

DOUBLE BREAK-OFF PLUG
(19008)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
