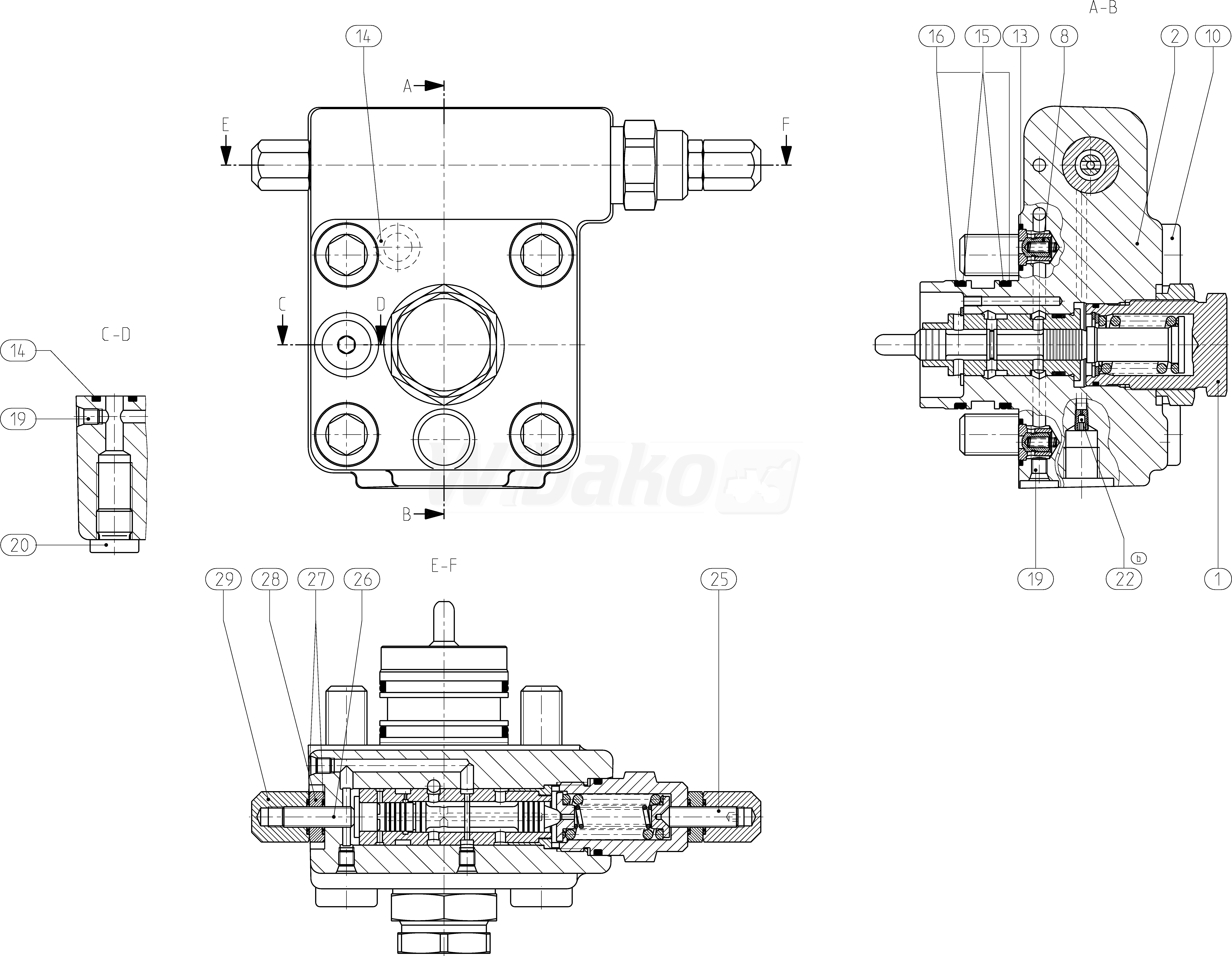

AA6VM250HZD/63W2-VZB080B-SO188 (R902448378)
CONTROL PART (164099)

CONTROL PART
(164099)


1

VALVE INSERT
(14262)


2

CONTROL HOUSING
(164100)


8

HY-CHECK VALVE
(14266)


10

SOCKET HEAD CAP SCREW
(14267)


13

O-RING
(14268)


14

O-RING
(14269)


15

O-RING
(14270)


16

BACKUP RING
(14271)


19

DOUBLE BREAK-OFF PLUG
(18990)


20

SCREW PLUG
(11348)


22

NOZZLE
(14272)


25

VALVE INSERT
(162438)


26

SETSCREW
(54704)


27

BONDED SEAL RING
(11921)


28

NUT
(14286)


29

CAP NUT
(14287)
