AA6VM250MA/61W-PPB020A (R910936237)

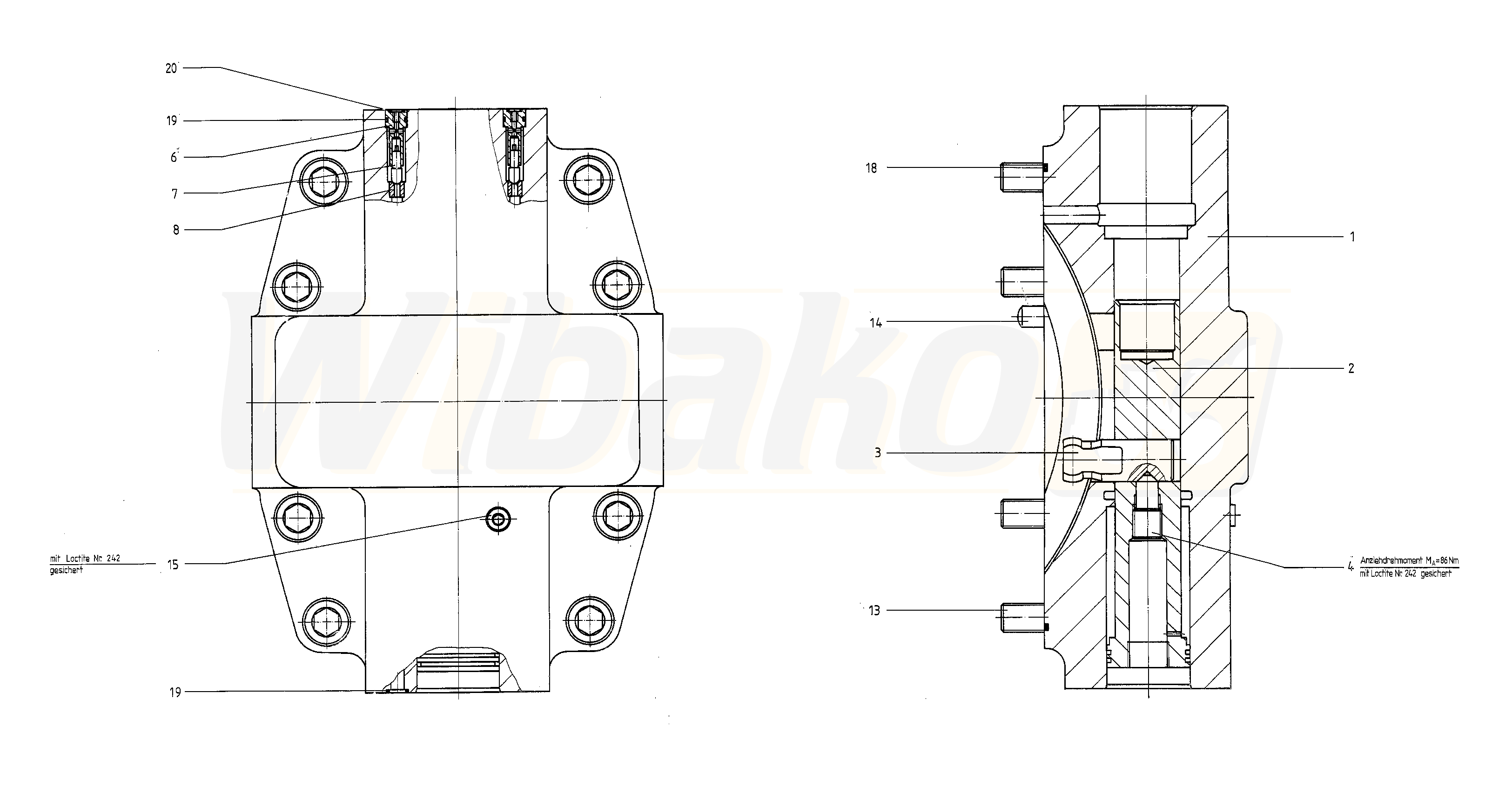

ADJUSTING PIECE (164080)

ADJUSTING PIECE
(164080)


1

COVER PLATE
(17542)


2

POSITIONING PISTON
(164083)


3

POSITIONING STUD
(17544)


4

SETSCREW
(164084)


6

VALVE GUIDE
(17545)


7

BOLT
(13841)


8

BUSHING
(11333)


13

SOCKET HEAD CAP SCREW
(14261)


14

STRAIGHT PIN
(14260)


15

SCREW PLUG
(10330)


18

O-RING
(162715)


19

O-RING
(10098)


20

O-RING
(162716)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
