AA6VM355EP1G/63W1-PZH027B (R910939580)

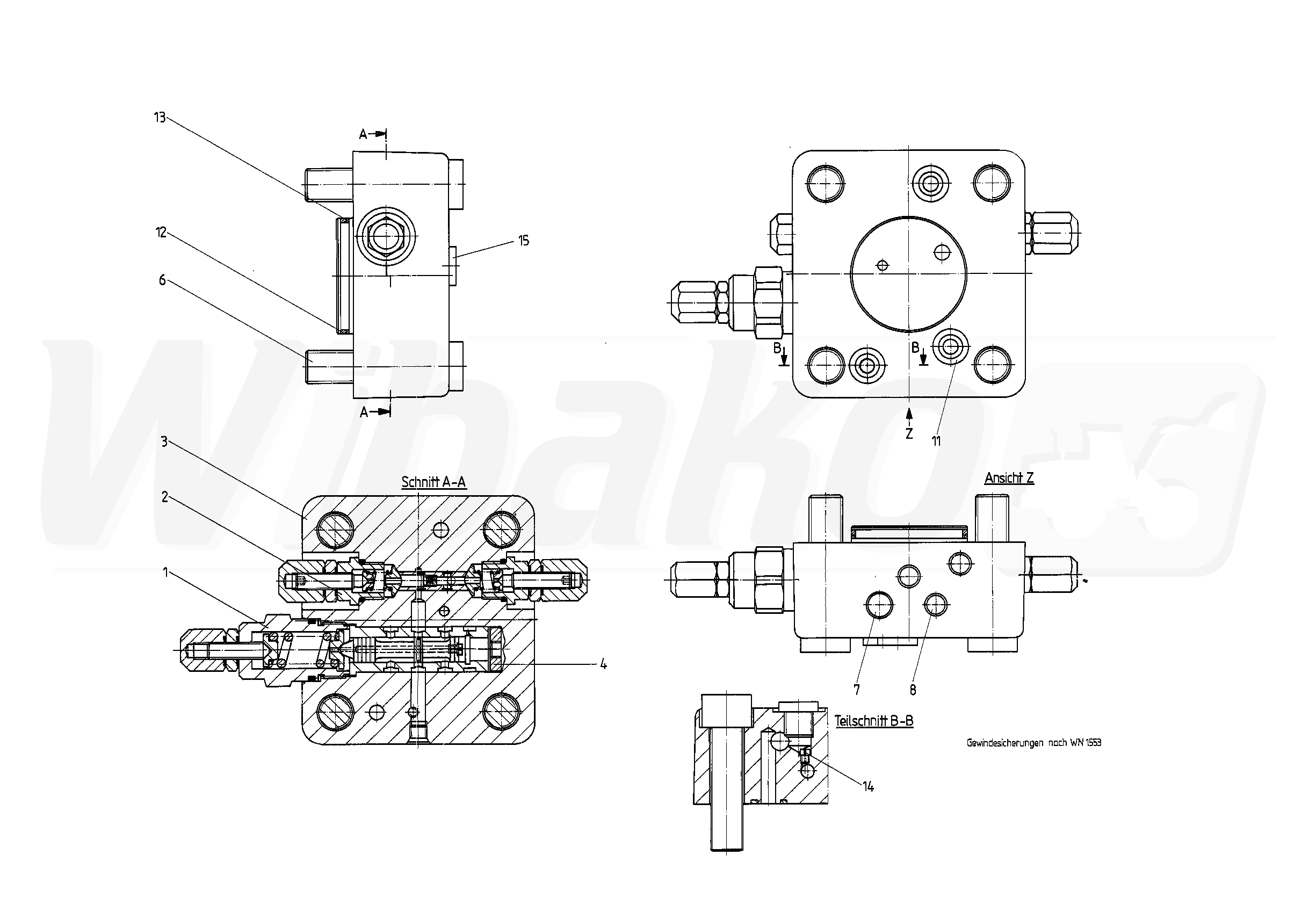

COVER (164196)

COVER
(164196)


1

VALVE INSERT
(162791)


2

SWIVEL TIME LIMITING VALVE
(162785)

Group »


3

COVER
(164201)


4

STOP DISC
(14276)


6

SOCKET HEAD CAP SCREW
(125155)


7

DOUBLE BREAK-OFF PLUG
(19010)


8

DOUBLE BREAK-OFF PLUG
(19009)


11

O-RING
(10095)


12

O-RING
(164200)


13

BACKUP RING
(164186)


14

NOZZLE
(13282)


15

SCREW PLUG
(10015)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
