AA6VM355DA/63W2-PZH020B-SO28 (R910970724)

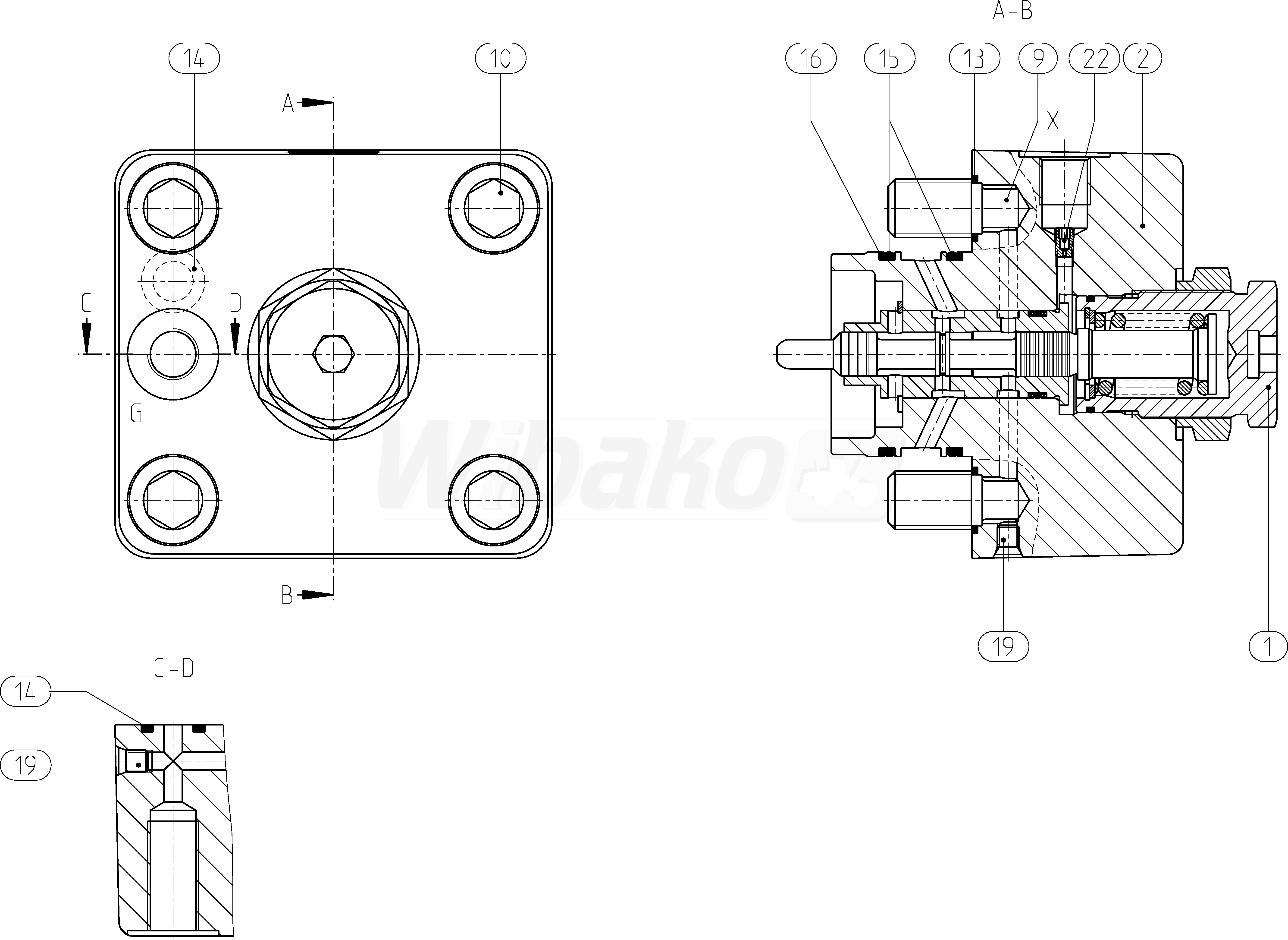

CONTROL PART (164237)

CONTROL PART
(164237)


1

VALVE INSERT
(162755)


2

CONTROL HOUSING
(164239)


9

PLUG
(18324)


10

SOCKET HEAD CAP SCREW
(16143)


13

O-RING
(15405)


14

O-RING
(10095)


15

O-RING
(164200)


16

BACKUP RING
(164186)


19

DOUBLE BREAK-OFF PLUG
(18990)


22

NOZZLE
(14272)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
