AA6VM355EP2/63W2-VPH010DA (R902412977)
Axial piston variable motor A6VM Series 63. Geometric displacement 355 cm3. Control device: proportional control, electric, U = 24 V. Setting ranges for displacement: Vg min = 0.4 to 0.8 Vg max Vg max = Vg max to 0.8 Vg max. Sealing material: FKM (fluoroelastomer). Parallel keyed shaft DIN 6885. Mounting flange ISO 3019-2, 8-hole. Port plate for working line: SAE working ports A and B at rear, without valve.

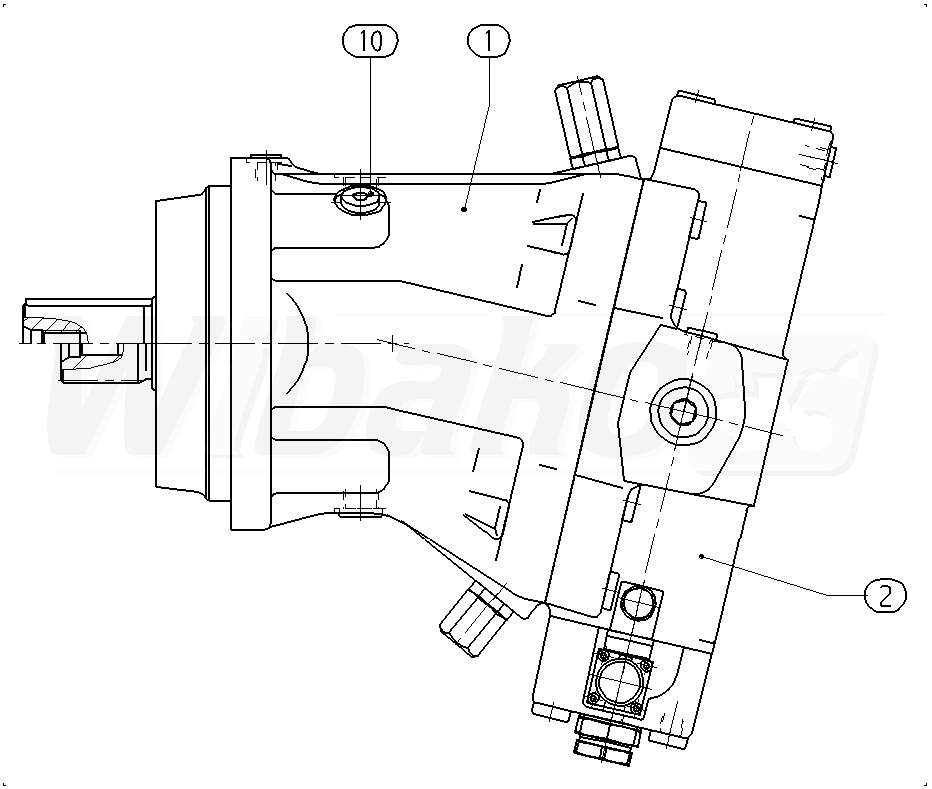

The above diagrams belong to Rexroth www.boschrexroth.com
