AA6VM355HA1/61W-PZH027A (R910921682)

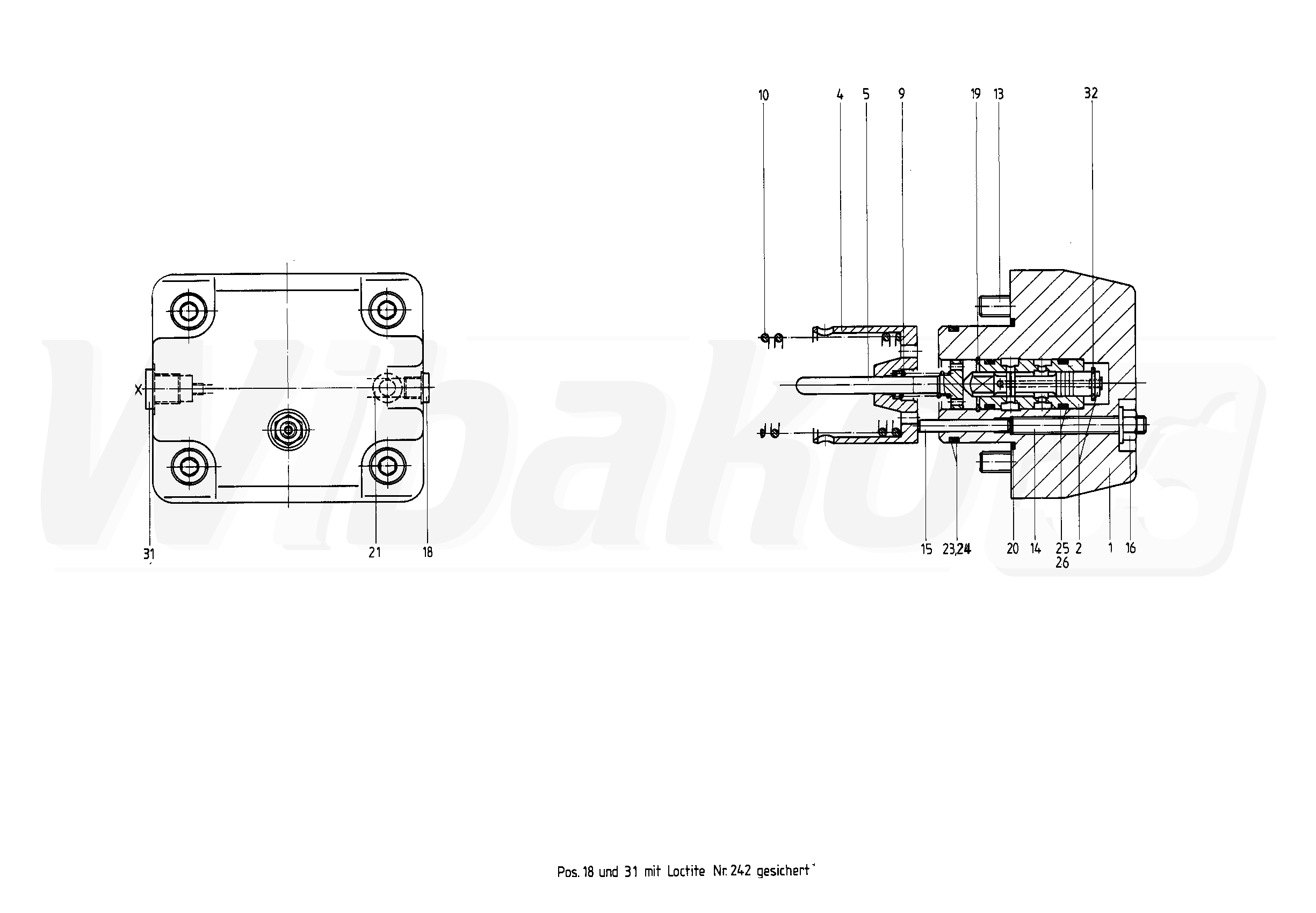

CONTROL PART (164441)

CONTROL PART
(164441)


1

CONTROL HOUSING
(164442)


2

CONTROL PISTON
(164443)


4

ADJUSTING BUSHING
(164154)


5

SPRING BOLT
(164156)


9

COMPRESSION SPRING
(164161)


10

COMPRESSION SPRING
(164163)


13

SOCKET HEAD CAP SCREW
(18251)


14

SETSCREW
(164164)


15

STRAIGHT PIN
(164166)


16

DUMMY
(164169)


18

SCREW PLUG
(10220)


19

RETAINING RING
(164171)


20

O-RING
(18273)


21

O-RING
(164173)


23

O-RING
(18236)


24

BACKUP RING
(164175)


25

O-RING
(101465)


26

DUMMY
(164177)


31

SCREW PLUG
(10015)


32

RETAINING RING
(164444)
