AA6VM500HD1G/63W2-PZH027VB (R910933168)

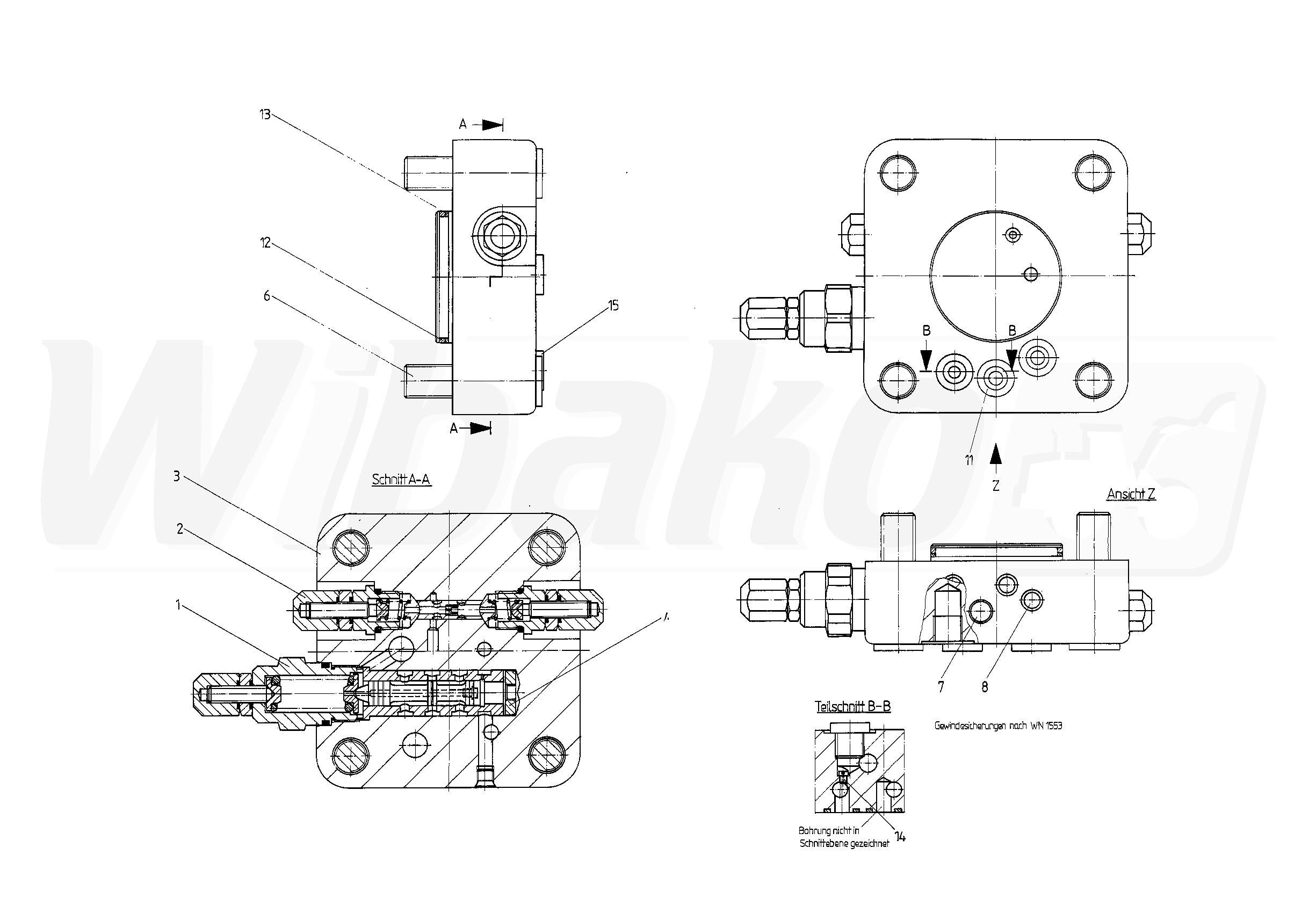

COVER (165263)

COVER
(165263)


1

VALVE INSERT
(162791)


2

SWIVEL TIME LIMITING VALVE
(162785)

Group »


3

COVER
(165043)


4

STOP DISC
(14276)


6

SOCKET HEAD CAP SCREW
(14261)


7

DOUBLE BREAK-OFF PLUG
(19010)


8

DOUBLE BREAK-OFF PLUG
(19009)


11

O-RING
(10095)


12

O-RING
(164892)


13

BACKUP RING
(164893)


14

NOZZLE
(13282)


15

SCREW PLUG
(10015)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
