AA6VM500HD3/63W2-PZH150EB-SO10 (R910947045)

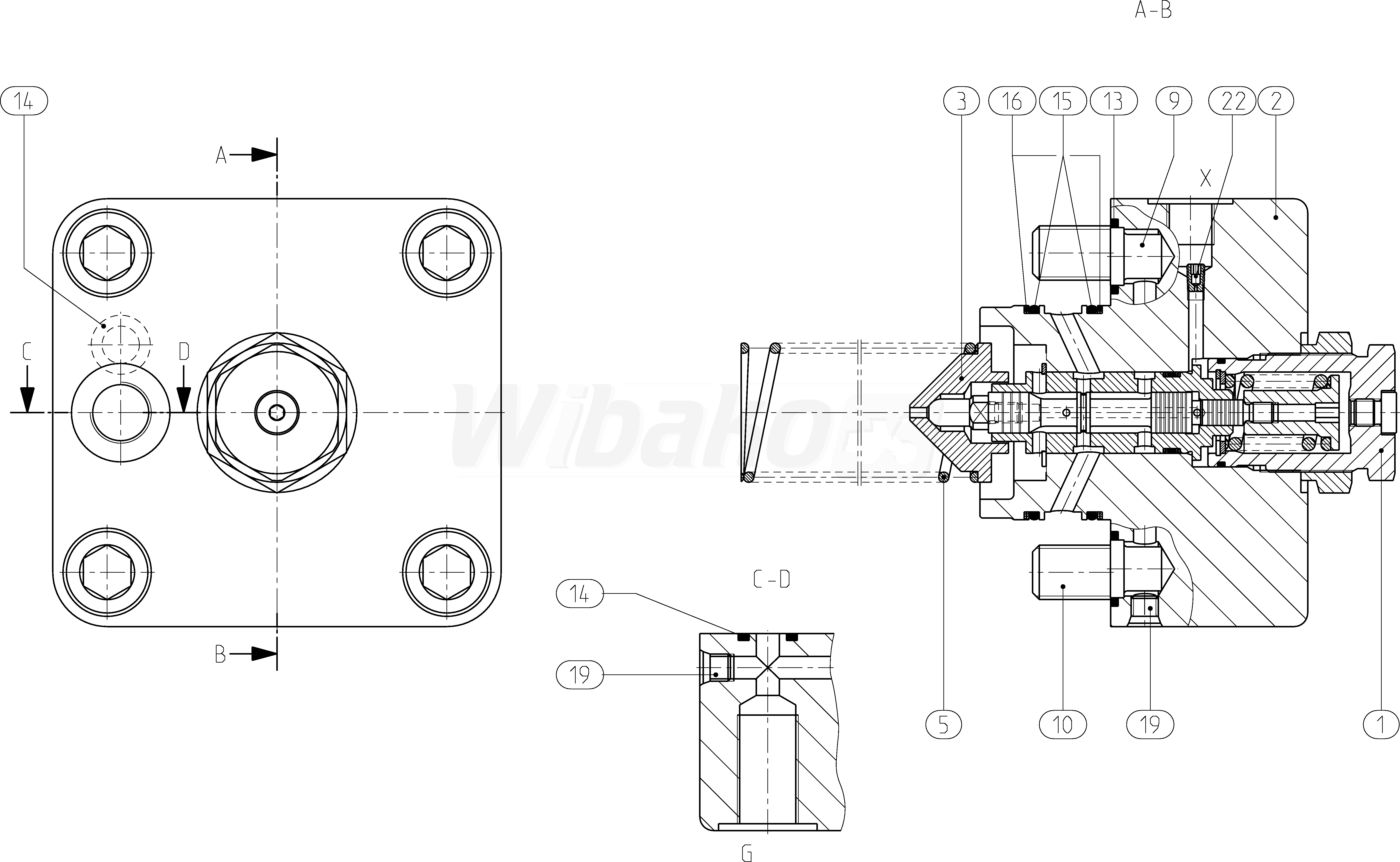

CONTROL PART (165319)

CONTROL PART
(165319)


1

VALVE INSERT
(163920)


2

CONTROL HOUSING
(165124)


3

SPRING DISK
(164907)


5

SPRING
(164908)


9

PLUG
(165042)


10

SOCKET HEAD CAP SCREW
(16143)


13

O-RING
(10086)


14

O-RING
(10095)


15

O-RING
(164892)


16

BACKUP RING
(164893)


19

DOUBLE BREAK-OFF PLUG
(19009)


22

NOZZLE
(14272)



Return
