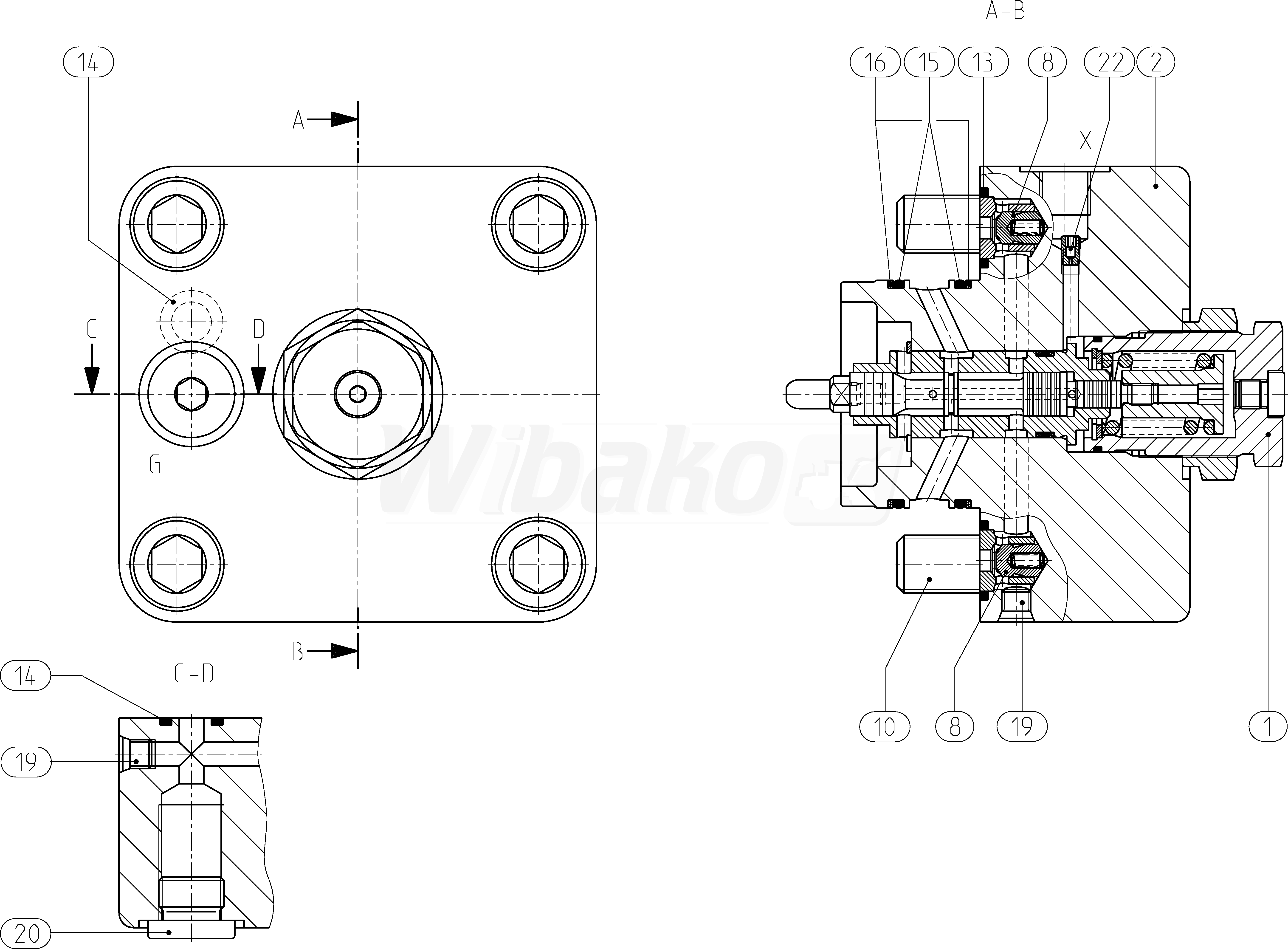

AA6VM500HZ/63W2-VZH017B-SO26 (R910965366)
CONTROL PART (165356)

CONTROL PART
(165356)


1

VALVE INSERT
(21059)


2

CONTROL HOUSING
(165124)


8

HY-CHECK VALVE
(164891)


10

SOCKET HEAD CAP SCREW
(16143)


13

O-RING
(15656)


14

O-RING
(14269)


15

O-RING
(84021)


16

BACKUP RING
(164893)


19

DOUBLE BREAK-OFF PLUG
(19009)


20

SCREW PLUG
(11292)


22

NOZZLE
(14272)


1


(21059)


2


(165124)


8


(164891)


10


(16143)


13


(15656)


14


(14269)


15


(84021)


16


(164893)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
