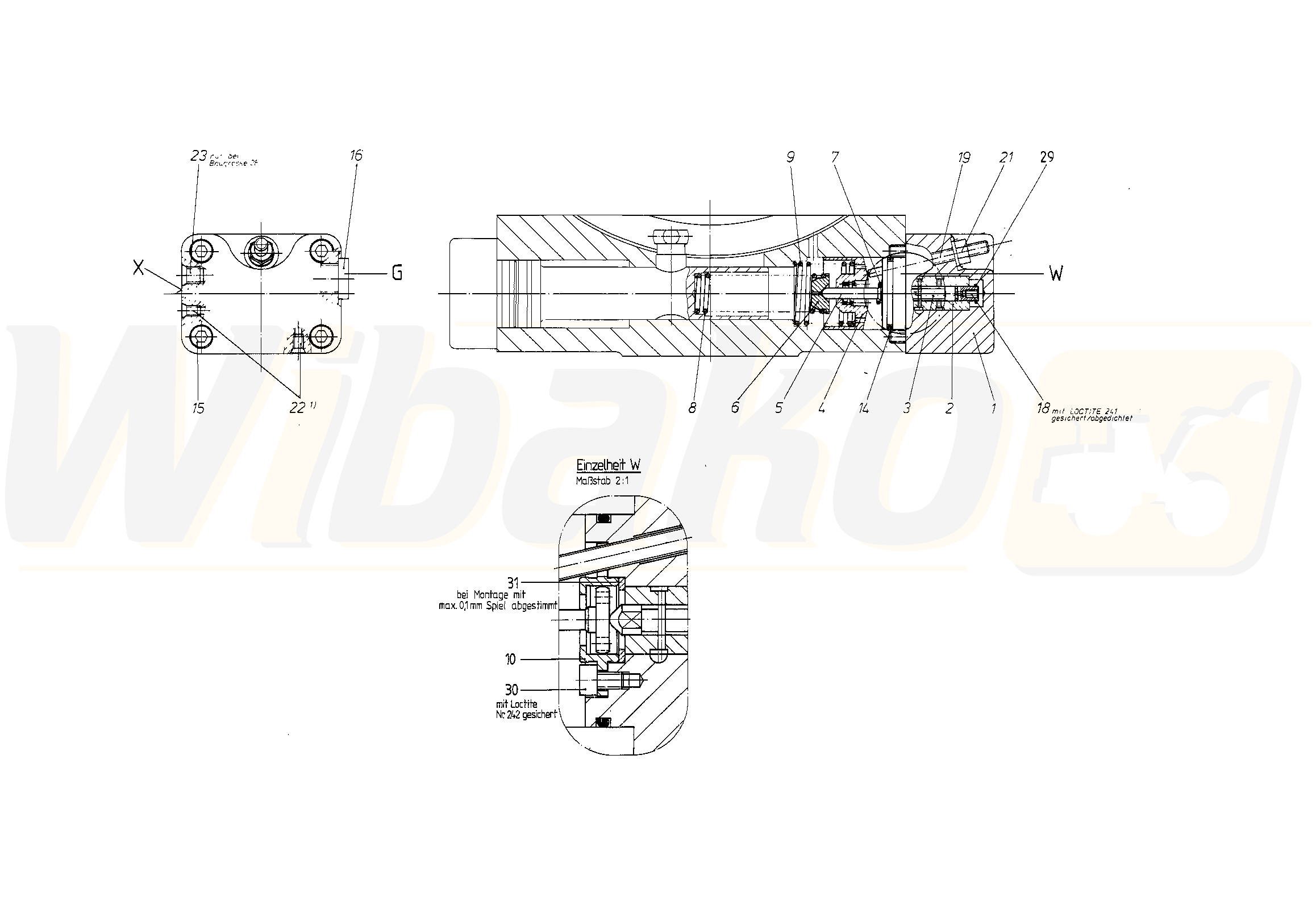

AAA6VM250HA2T/61W-PSD520A-SO5 (R910909218)
CONTROL PART (166325)

CONTROL PART
(166325)


1

CONTROL HOUSING
(166242)


2

CONTROL SLEEVE
(166326)


3

CONTROL PISTON
(166327)


4

ADJUSTING BUSHING
(166328)


5

SPRING BOLT
(17552)


6

SPRING DISK
(166329)


7

COMPRESSION SPRING
(166330)


8

COMPRESSION SPRING
(166331)


9

COMPRESSION SPRING
(17554)


10

STOP BUSHING
(17556)


14

O-RING
(162718)


15

SOCKET HEAD CAP SCREW
(55169)


16

SCREW PLUG
(11370)


18

SETSCREW
(16210)


19

SETSCREW
(162806)


21

SEALING NUT
(10369)


22

DOUBLE BREAK-OFF PLUG
(19008)


23

DOUBLE BREAK-OFF PLUG
(19009)


29

RETAINING RING
(163242)


30

SOCKET HEAD CAP SCREW
(17561)


31

SUPPORTING DISC
(166332)
