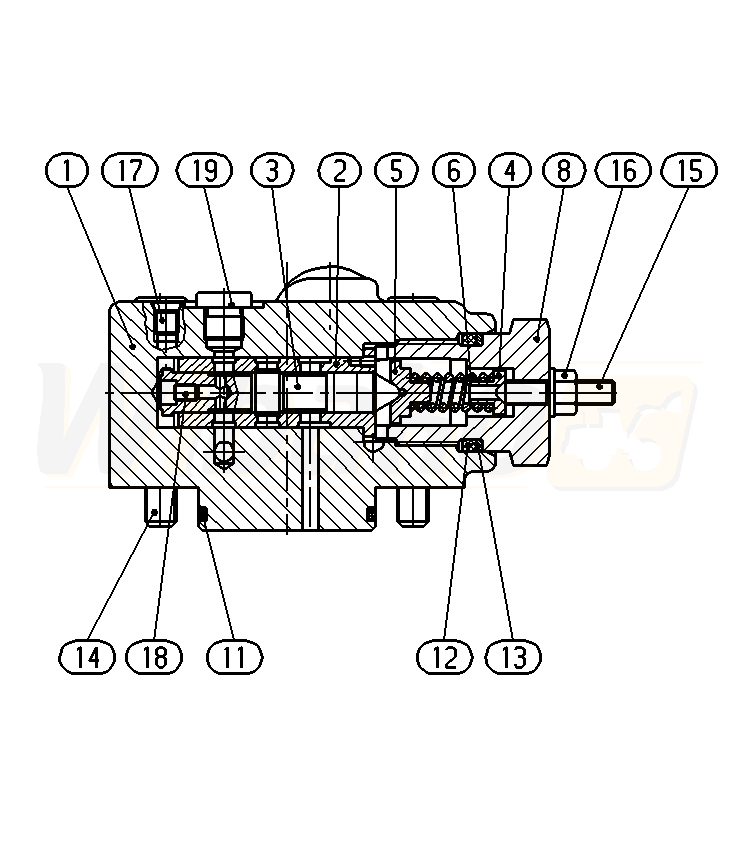

A6VE107FOE/63W-VZU0X7B-S (R902006937)
CONTROL PART (167804)

CONTROL PART
(167804)


1

CONTROL HOUSING
(167805)


2

CONTROL SLEEVE
(11226)


3

CONTROL PISTON
(11227)


4

SPRING DISK
(11239)


5

SPRING DISK
(11229)


6

COMPRESSION SPRING
(11230)


8

SCREW PLUG
(11228)


11

O-RING
(11682)


12

O-RING
(11240)


13

BACKUP RING
(11242)


14

SOCKET HEAD CAP SCREW
(10778)


15

SETSCREW
(10770)


16

SEALING NUT
(10369)


17

DOUBLE BREAK-OFF PLUG
(18990)


18

PLUG
(11350)


19

SCREW PLUG
(11659)
