A6VE55FR/63W-VZL020B-S (R902121858)

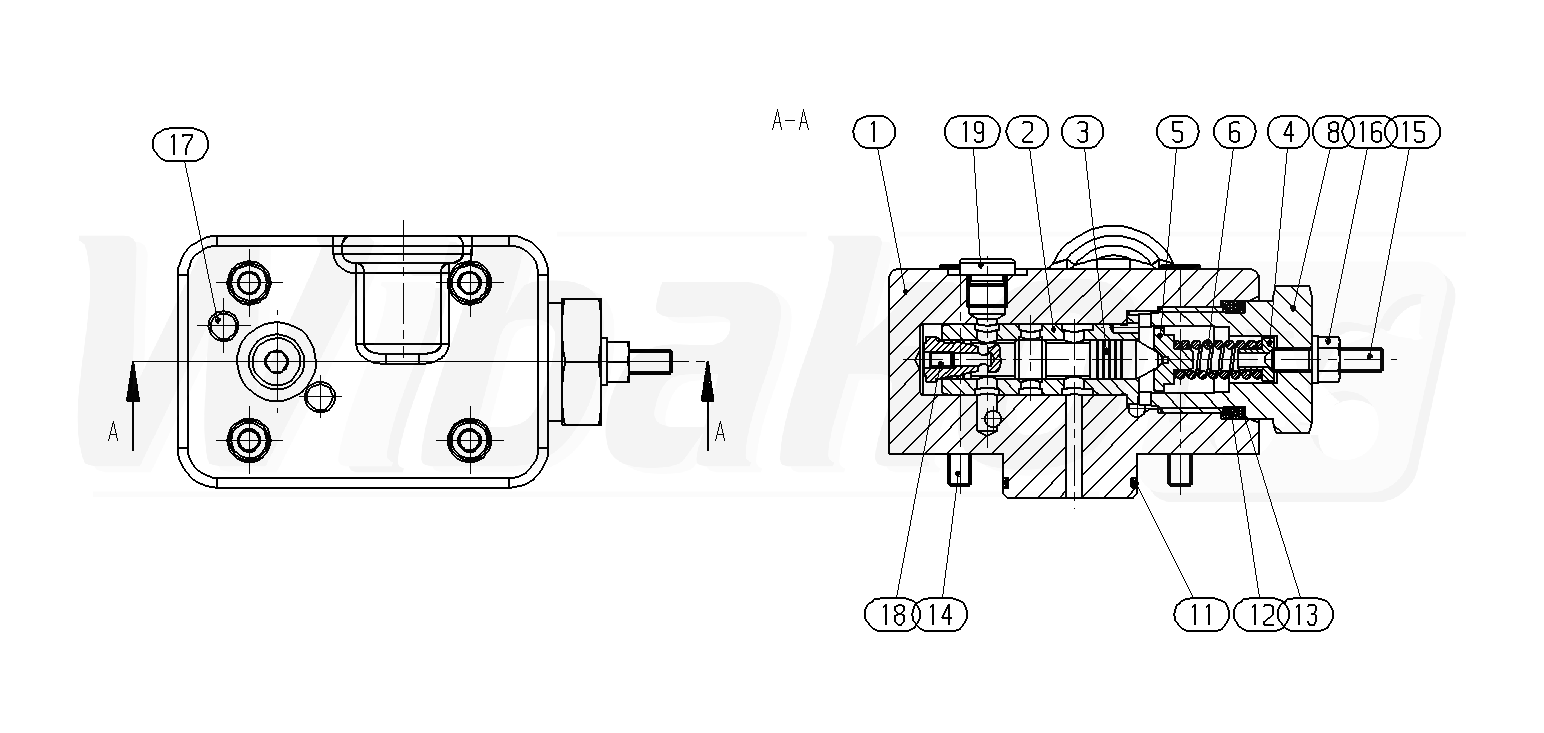

CONTROL PART (171590)

CONTROL PART
(171590)


1

CONTROL HOUSING
(171596)


2

CONTROL SLEEVE
(11226)


3

CONTROL PISTON
(11227)


4

SPRING DISK
(11239)


5

SPRING DISK
(11229)


6

COMPRESSION SPRING
(11230)


8

SCREW PLUG
(11228)


11

O-RING
(11346)


12

O-RING
(11240)


13

BACKUP RING
(11242)


14

SOCKET HEAD CAP SCREW
(10505)


15

SETSCREW
(10770)


16

SEALING NUT
(10369)


17

DOUBLE BREAK-OFF PLUG
(19008)


18

SETSCREW
(16210)


19

SCREW PLUG
(11659)
