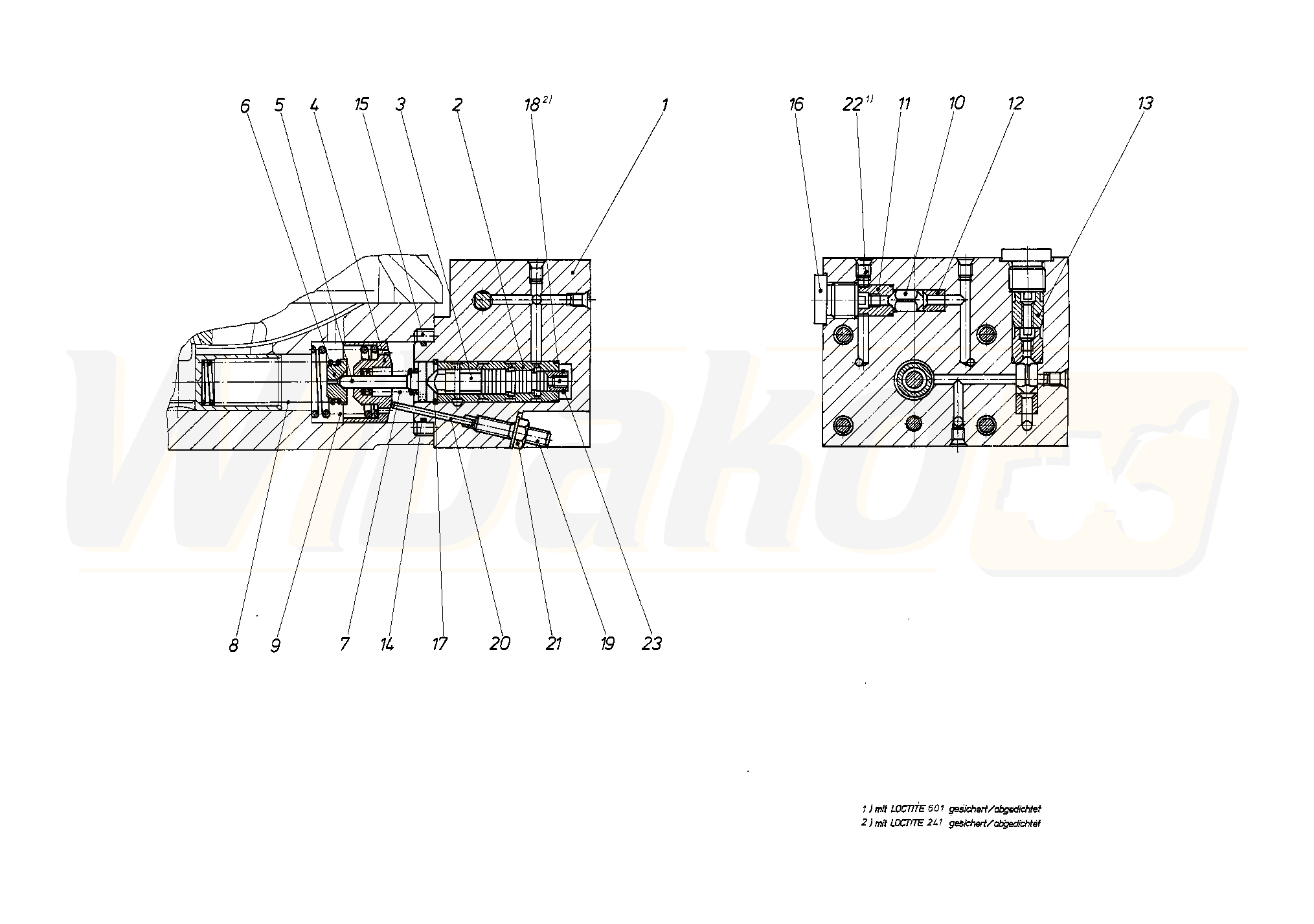

A6VE55HA2T/60W-PZL020A-S (R909423969)
CONTROL PART (171730)

CONTROL PART
(171730)


1

CONTROL HOUSING
(171731)


2

CONTROL SLEEVE
(171732)


3

CONTROL PISTON
(171733)


4

ADJUSTING BUSHING
(171052)


5

SPRING BOLT
(17552)


6

SPRING DISK
(19380)


7

COMPRESSION SPRING
(16208)


8

COMPRESSION SPRING
(170696)


9

COMPRESSION SPRING
(171053)


10

VALVE CONE
(10365)


11

BUSHING
(171734)


12

BUSHING
(10367)


13

SPACER BUSHING
(171735)


14

O-RING
(13043)


15

SOCKET HEAD CAP SCREW
(10507)


16

SCREW PLUG
(10015)


17

RETAINING RING
(11349)


18

SETSCREW
(16210)


19

SETSCREW
(11351)


20

STRAIGHT PIN
(171736)


21

SEALING NUT
(10369)


22

DOUBLE BREAK-OFF PLUG
(19008)


23

RETAINING RING
(171737)
