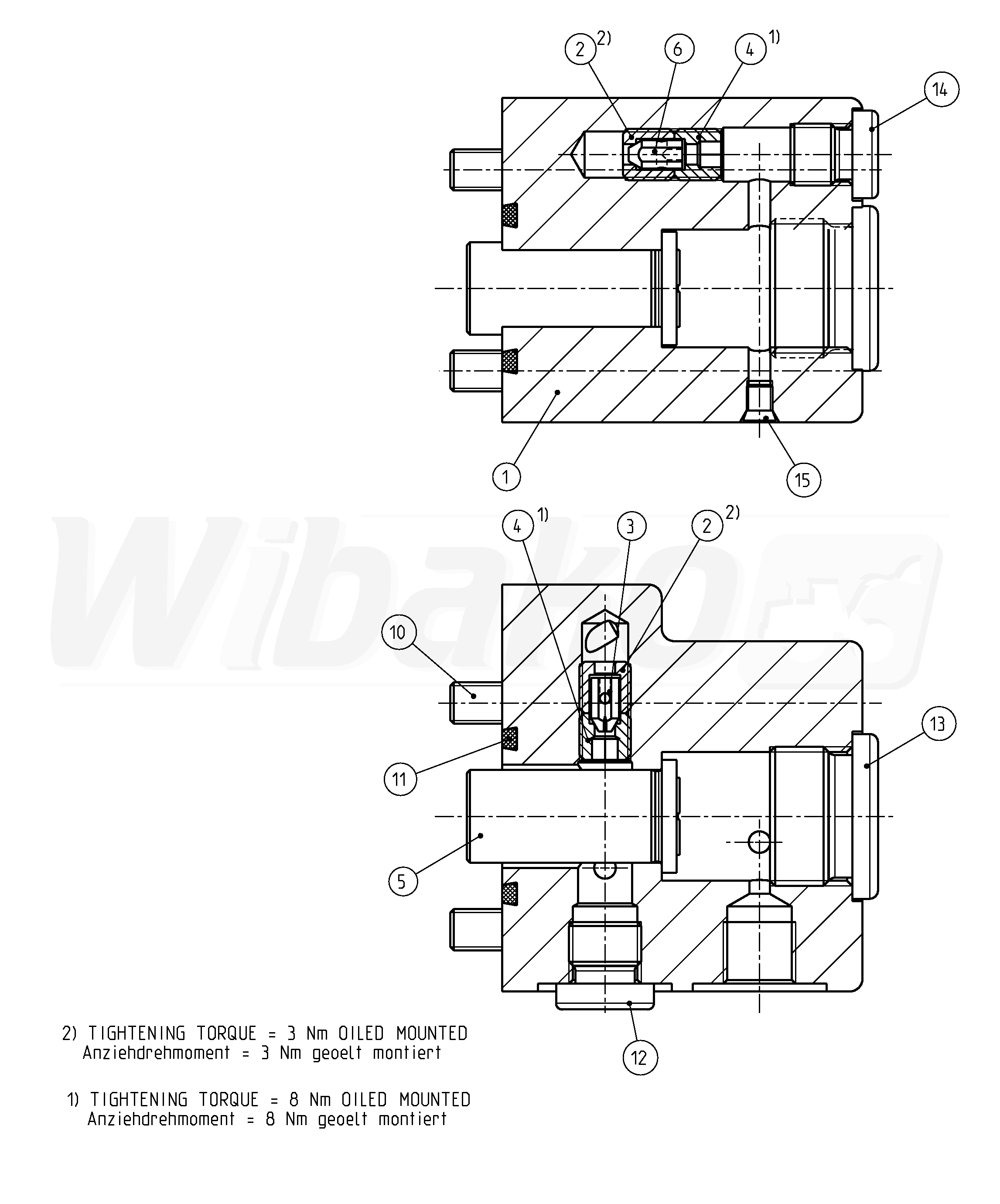

A6VE55HA2TX/63W-VZL020D0A-S (R902218749)
STROKE LIMITER (171827)

STROKE LIMITER
(171827)


1

HOUSING
(171828)


2

THROTTLE SCREW
(12382)


3

THROTTLE PIN
(12394)


4

THROTTLE SCREW
(12384)


5

PISTON
(171829)


6

VALVE PIN
(13502)


10

SOCKET HEAD CAP SCREW
(171830)


11

O-RING
(17536)


12

SCREW PLUG
(11348)


13

SCREW PLUG
(20638)


14

SCREW PLUG
(13317)


15

DOUBLE BREAK-OFF PLUG
(19008)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
