A4VG85/40LF.KOMPAKTGETR.31020. (R902047905)

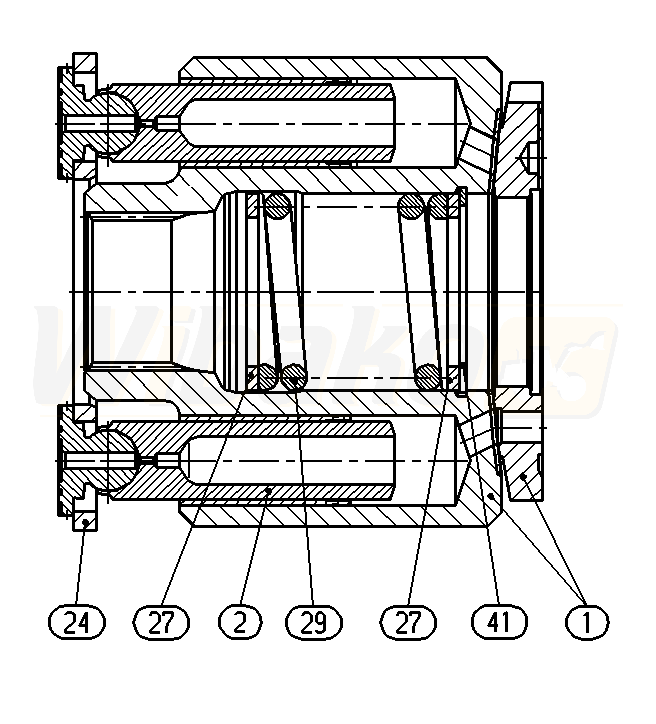

ROTARY GROUP (40090)

ROTARY GROUP
(40090)


1

CYLINDER
(40091)

Group »


2

PISTON PAD
(40220)


24

RETAINING PLATE
(40221)


27

WASHER
(40222)


29

COMPRESSION SPRING
(40223)


41

RETAINING RING
(16051)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
