A6VM055EZ700P001C/65MWV0C4S72C0-Y (R902253901)
Axial piston variable motor A6VM Series 65. Geometric displacement 055 cm3. Control device: two-point control, electrical, negative control, U = 24 V. Without pressure control/override. Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode. Without additional function. Damping with counterbalance valve BVD/BVE. Setting range for displacement: Without Vg max setting screw, long (0-adjustable) Vg min setting screw. Metric, port threads with O-ring sealing according to ISO 6149. Sealing material: FKM (fluoroelastomer). Standard shaft bearing. With flushing and boost pressure valve, mounted flushing on both sides, flushing flow at: Δp = pND ‒ pG = 25 bar and v = 10 mm2/s (pND = low pressure, pG = case pressure). Flushing flow: 8. Standard version with installation variants.

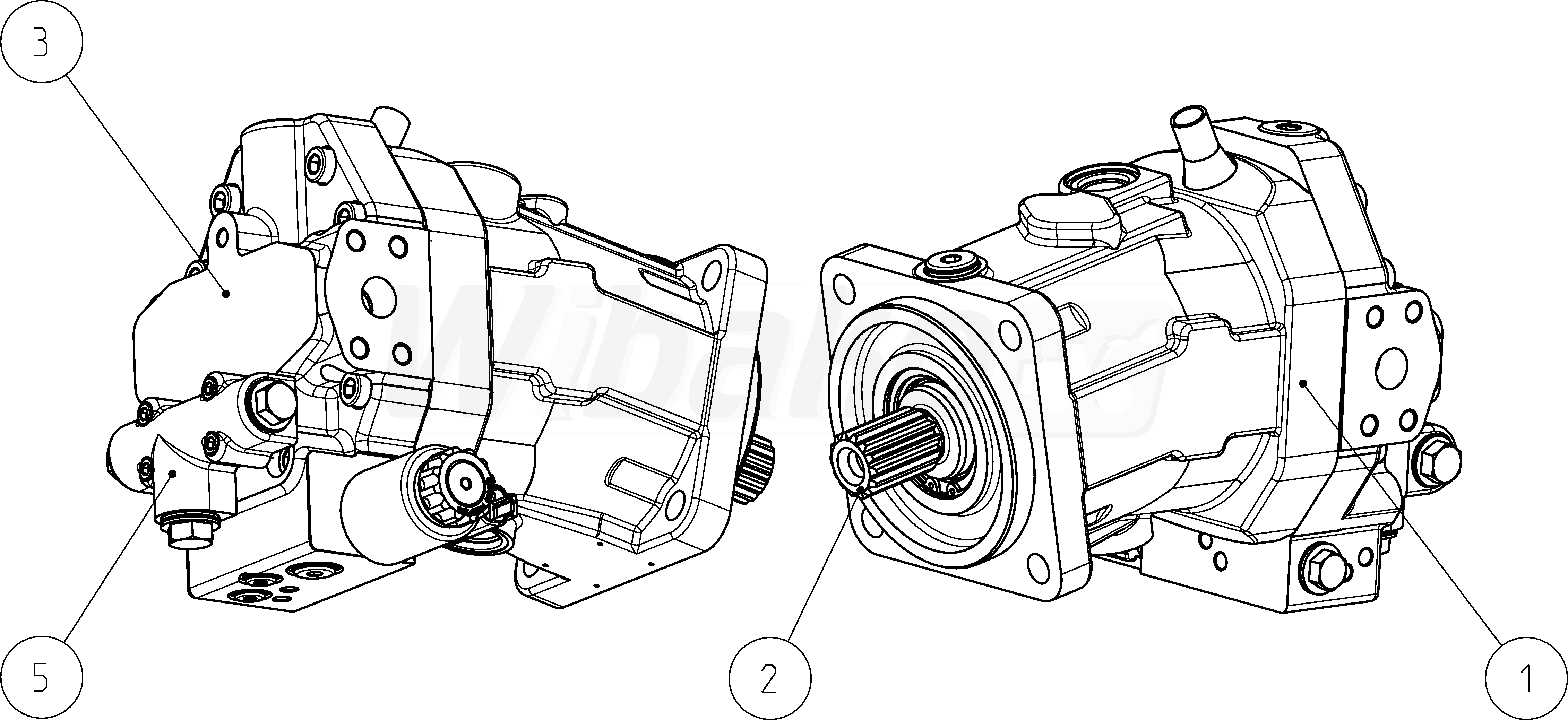

The above diagrams belong to Rexroth www.boschrexroth.com
