A6VM055FR5000007F/65XWV0M4Z6100-S (R902257038)

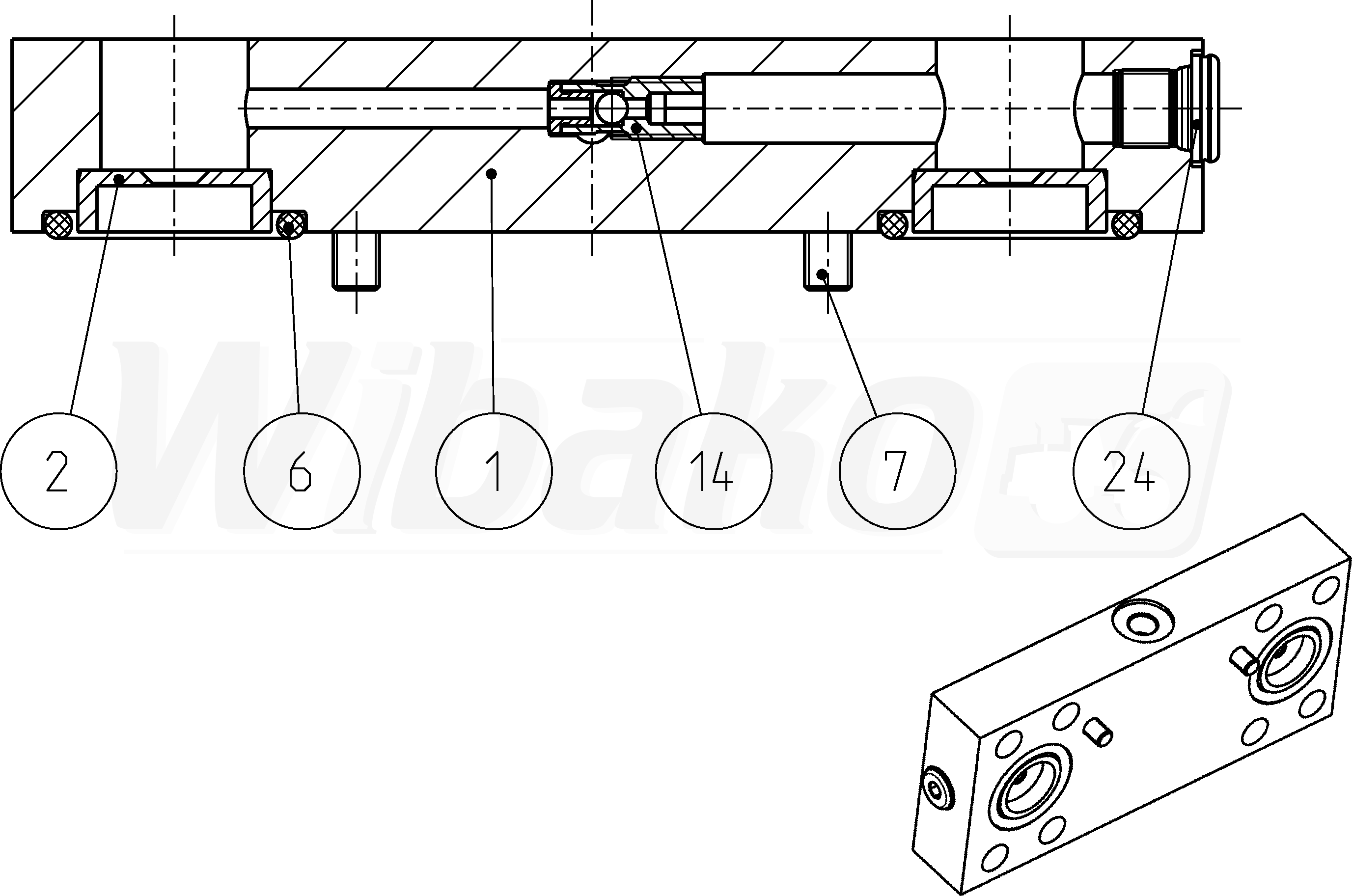

INTERMEDIATE PLATE (173612)

INTERMEDIATE PLATE
(173612)


1

INTERMEDIATE PLATE
(173615)


2

ORIFICE
(173616)


6

O-RING
(17536)


7

SOCKET HEAD CAP SCREW
(32144)


14

SHUTTLE VALVE
(11676)

Group »


24

SCREW PLUG
(16127)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
