A4VG85XXXX/40X-XXXXXXXXXX (R902071174)

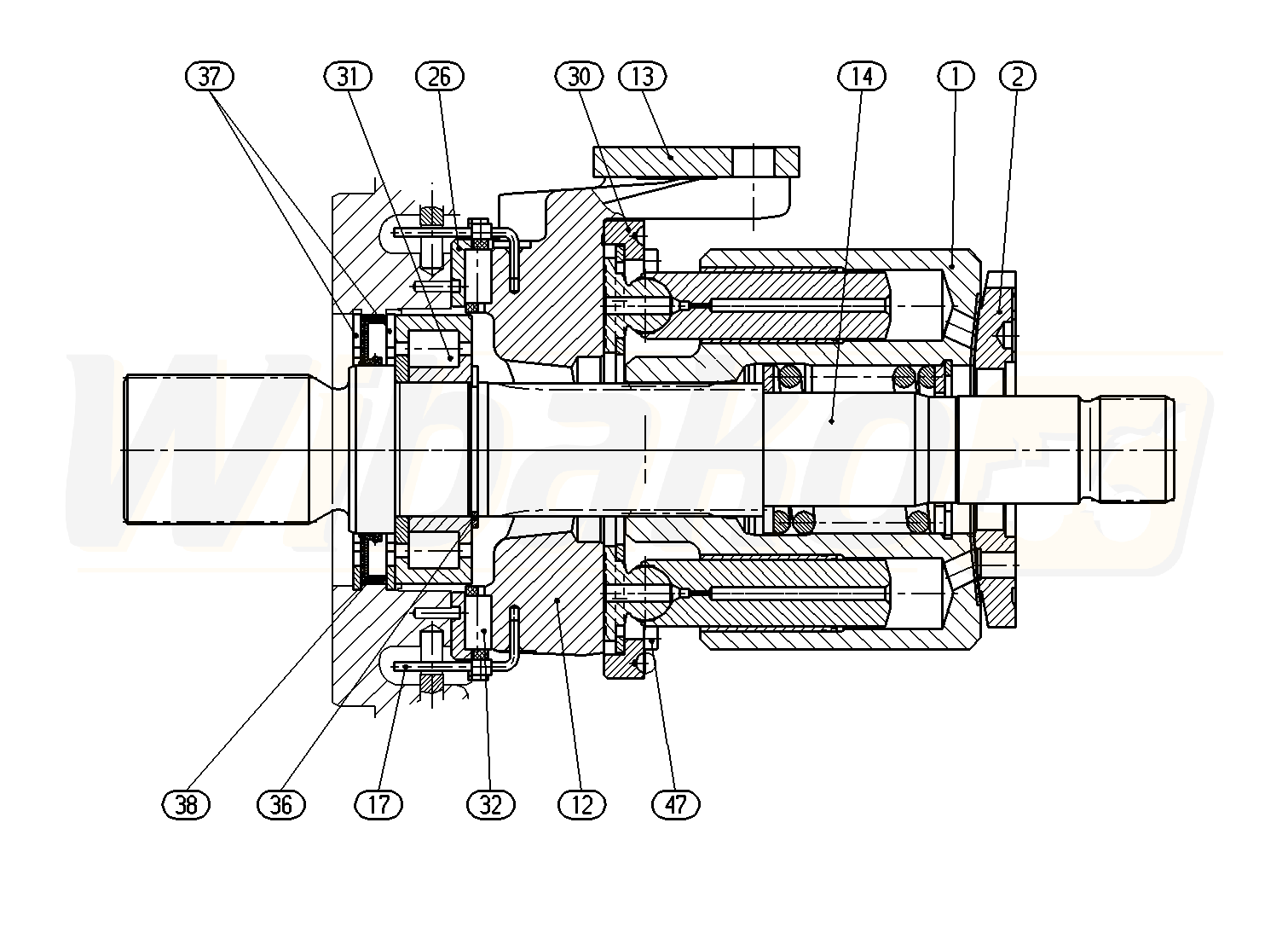

ROTARY GROUP (40151)

ROTARY GROUP
(40151)


1

ROTARY GROUP
(40152)

Group »


2

CONTROL PLATE
(40244)


12

CRADLE
(40245)


13

SLIDER
(10405)


14

DRIVE SHAFT
(40246)


17

WIRE
(10142)


26

BEARING SHELL PAIR
(16615)


30

RETAINING SEGMENT
(40247)


31

CYL. ROLLER BEARING
(10408)


32

CAGE PAIR
(40219)


36

RETAINING RING
(10410)


37

RETAINING RING
(10411)


38

SHAFT SEALING RING
(10412)


47

SOCKET HEAD CAP SCREW
(40248)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
