A6VM080EP100T000A/65MWV0N4Z81FV-S (R902153838)
Axial piston variable motor A6VM Series 65. Geometric displacement 080 cm3. Control device: proportional control, electrical, positive control, U = 12 V. Without pressure control/override. Metric, port threads with O-ring sealing according to ISO 6149. Sealing material: FKM (fluoroelastomer). Standard shaft bearing. Mounting flange ISO 3019-2 140-4. Splined shaft W35×2×16×9g. SAE working ports A and B at rear. With flushing and boost pressure valve, mounted flushing on both sides, flushing flow at: Δp = pND ‒ pG = 25 bar and v = 10 mm2/s (pND = low pressure, pG = case pressure). Flushing flow: 14. With speed sensor DSM/DSA mounted. Special version.

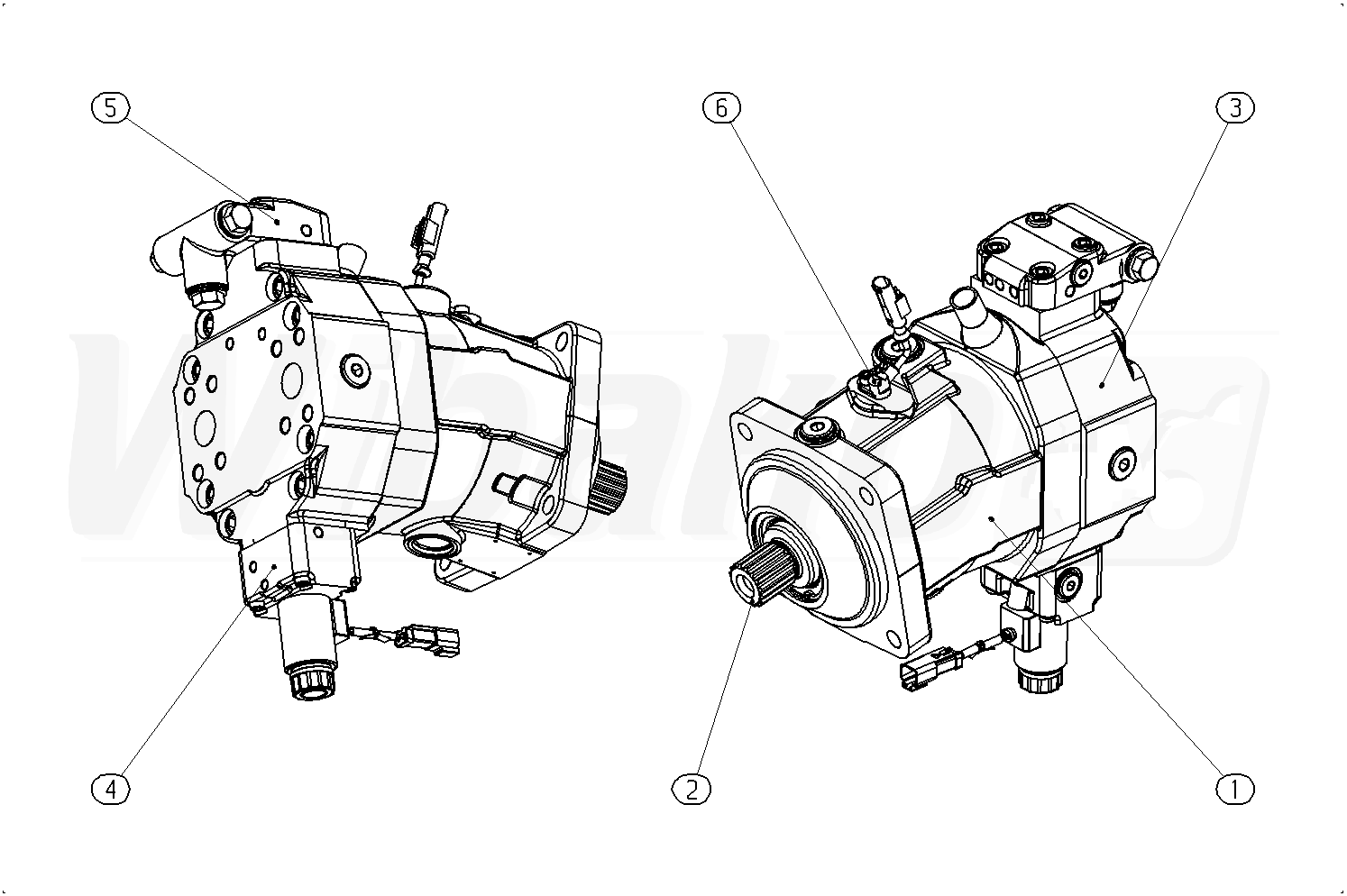

The above diagrams belong to Rexroth www.boschrexroth.com
