A6VM080EP100P000B/65NWV0N4Z81CV-Y (R902276801)
Axial piston variable motor A6VM Series 65. Geometric displacement 080 cm3. Control device: proportional control, electrical, positive control, U = 12 V. Without pressure control/override. Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode. Without additional function. Without damping. Setting range for displacement: Without Vg max setting screw, medium (0-adjustable) Vg min setting screw. With flushing and boost pressure valve, mounted flushing on both sides, flushing flow at: Δp = pND ‒ pG = 25 bar and v = 10 mm2/s (pND = low pressure, pG = case pressure). Flushing flow: no data. Standard version with installation variants.

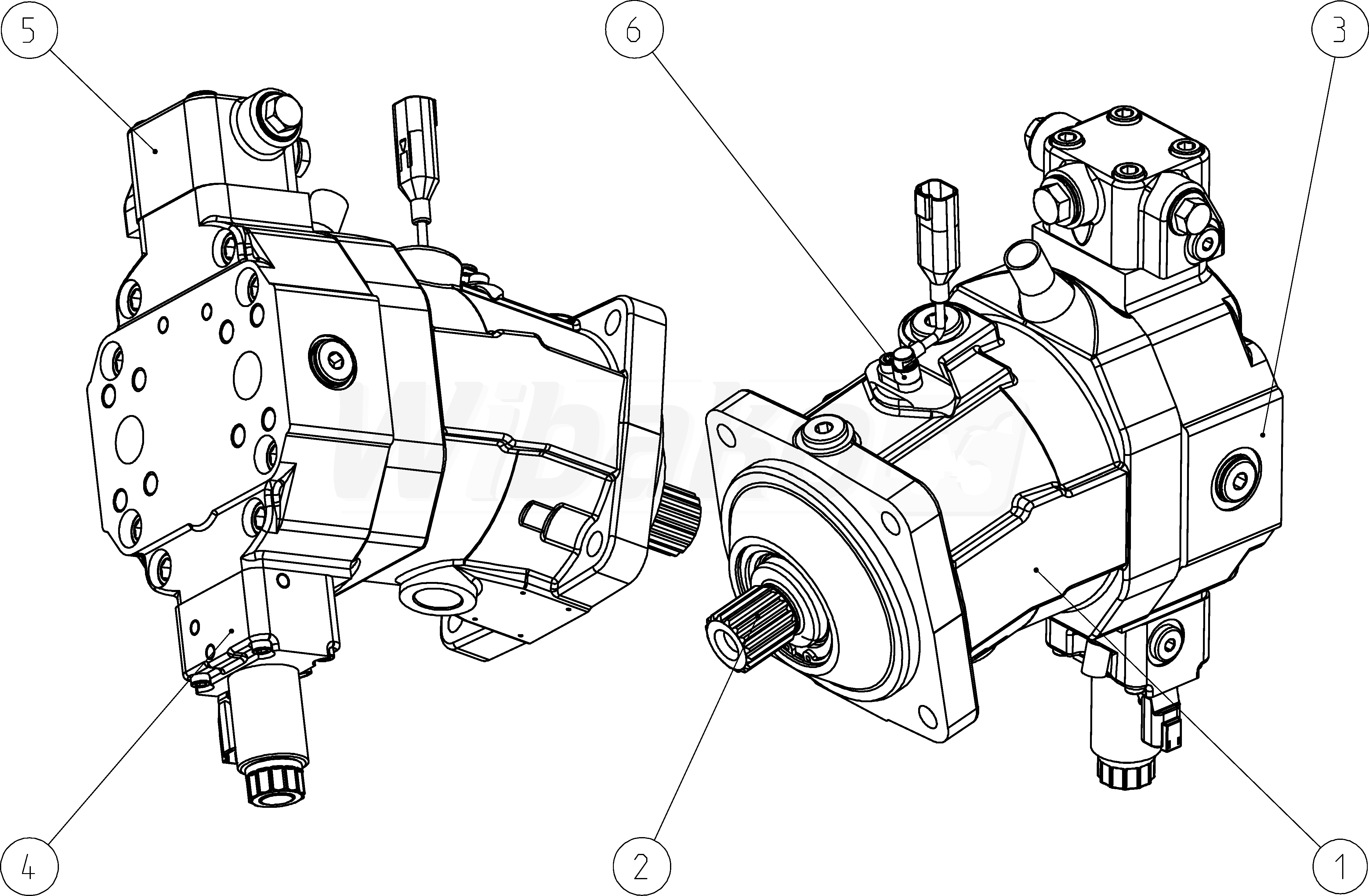

The above diagrams belong to Rexroth www.boschrexroth.com
