A6VM107DA/60W-PAB010B-S (R909442726)

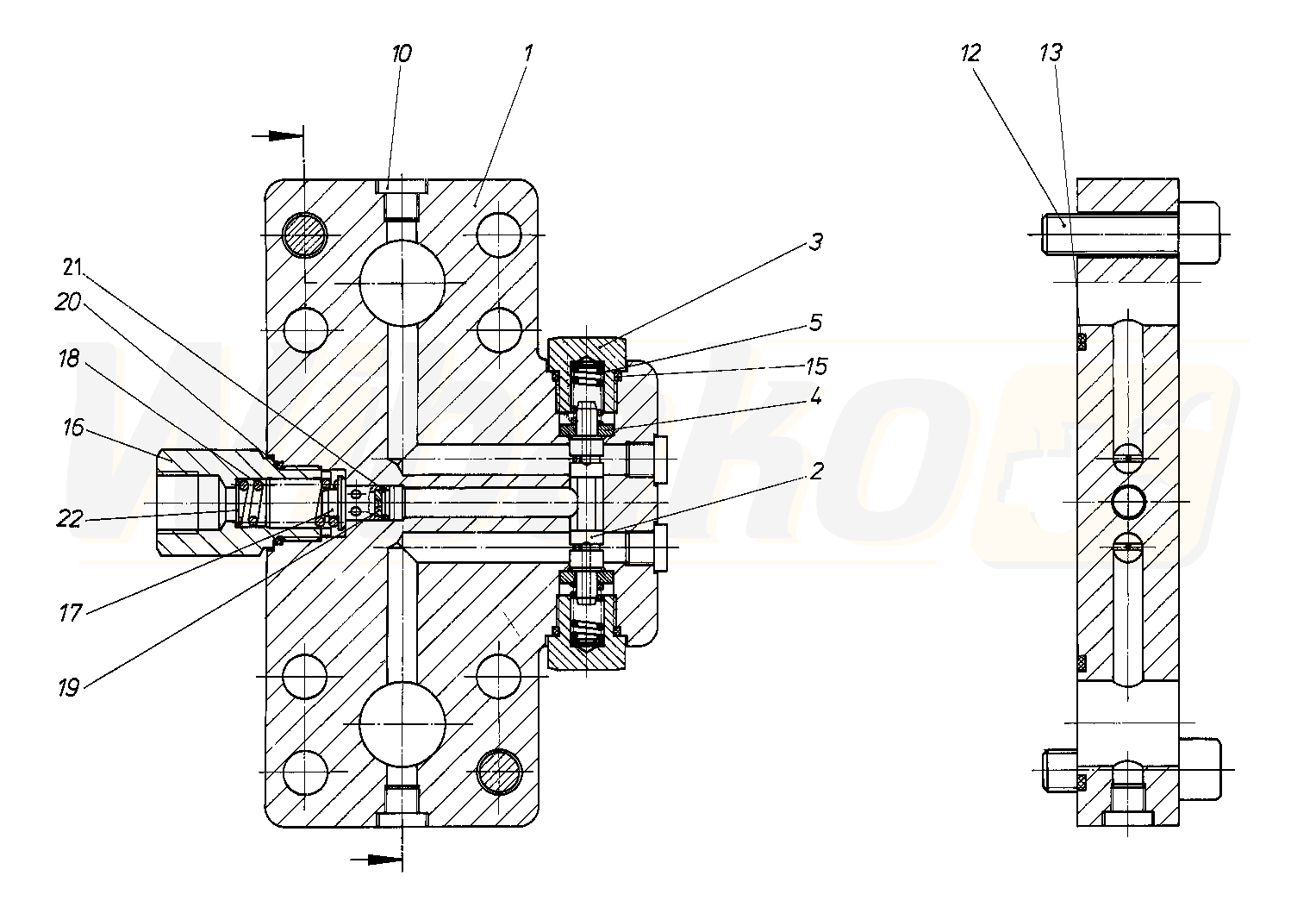

FLUSHING VALVE (174430)

FLUSHING VALVE
(174430)


1

FLUSHING VALVE PLATE
(174431)


2

FLUSHING PISTON
(11710)


3

SCREW PLUG
(11712)


4

WASHER
(11714)


5

COMPRESSION SPRING
(20021)


10

SCREW PLUG
(10220)


12

SOCKET HEAD CAP SCREW
(10492)


13

O-RING
(11552)


15

O-RING
(11818)


16

SCREW PLUG
(174432)


17

VALVE SPOOL
(11711)


18

COMPRESSION SPRING
(174433)


19

ORIFICE
(11731)


20

O-RING
(10214)


21

RETAINING RING
(11722)


22

SHIM RING
(11723)


22

SHIM RING
(11724)


22

SHIM RING
(11725)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
