A6VM107DA1/63W-VAB02XB-S (R902004235)

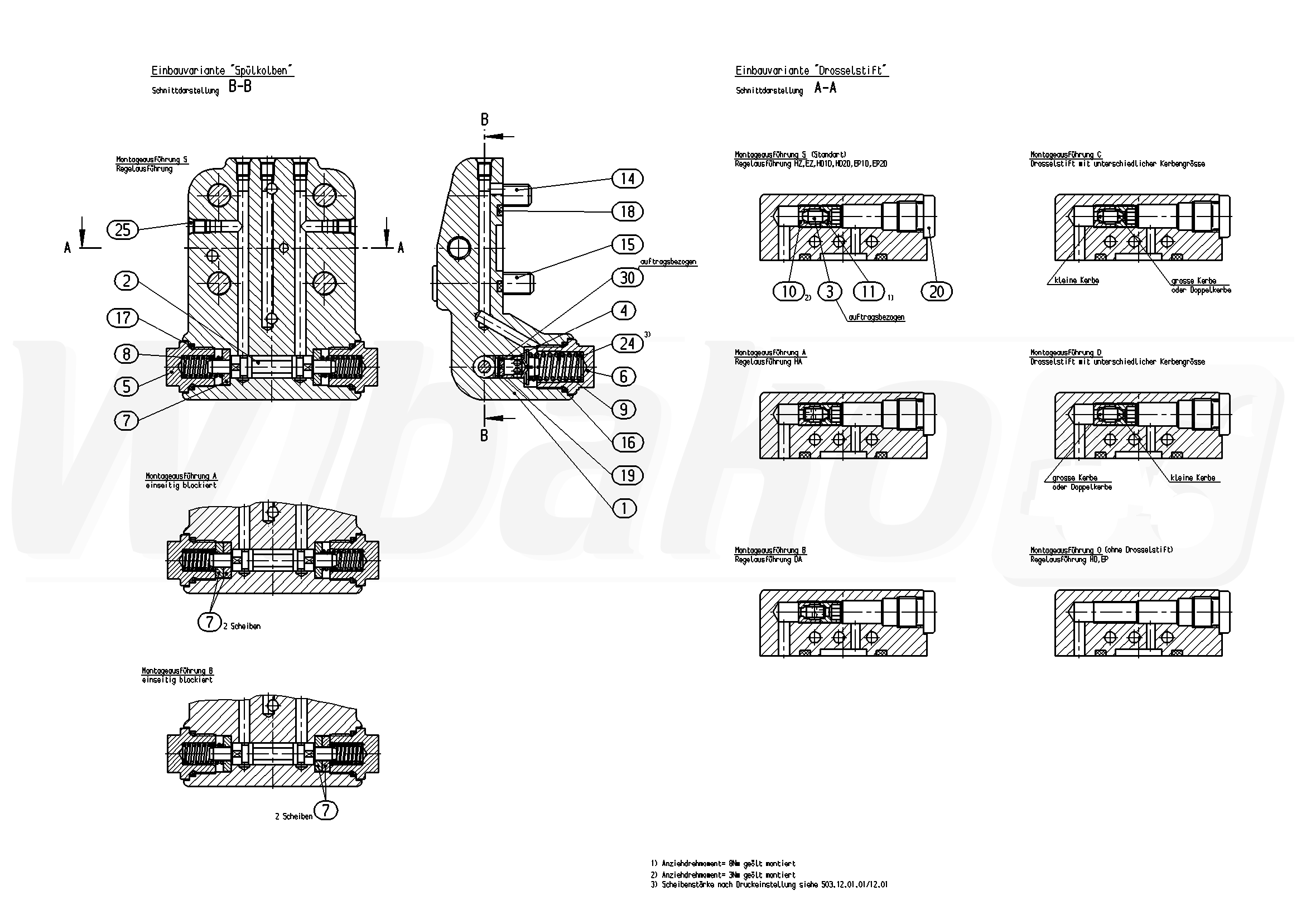

FLUSH/BOOST PRESSURE VALVE (19431)

FLUSH/BOOST PRESSURE VALVE
(19431)


1

VALVE HOUSING
(19499)


2

FLUSHING PISTON
(19500)


4

VALVE SPOOL
(11711)


5

SCREW PLUG
(11712)


6

SCREW PLUG
(11713)


7

WASHER
(11714)


8

COMPRESSION SPRING
(11715)


9

COMPRESSION SPRING
(11716)


10

THROTTLE SCREW
(12382)


11

THROTTLE SCREW
(12384)


14

SOCKET HEAD CAP SCREW
(11354)


15

SOCKET HEAD CAP SCREW
(19501)


16

O-RING
(11718)


17

O-RING
(11719)


18

O-RING
(11355)


19

RETAINING RING
(11722)


20

SCREW PLUG
(11348)


24

SHIM RING
(11723)


24

SHIM RING
(11724)


24

SHIM RING
(11725)


25

DOUBLE BREAK-OFF PLUG
(18990)
