A6VM107DA1/63W-VZB01000B (R902206614)
Axial piston variable motor A6VM Series 63. Geometric displacement 107 cm3. Control device: automatic control, speed related, pSt/pHD = 5/100, hydraulic travel direction valve. Sealing material: FKM (fluoroelastomer). Splined shaft DIN 5480. Mounting flange ISO 3019-2, 4-hole. Port plate for working line: SAE working ports A and B at rear, without valve. Without speed sensor.

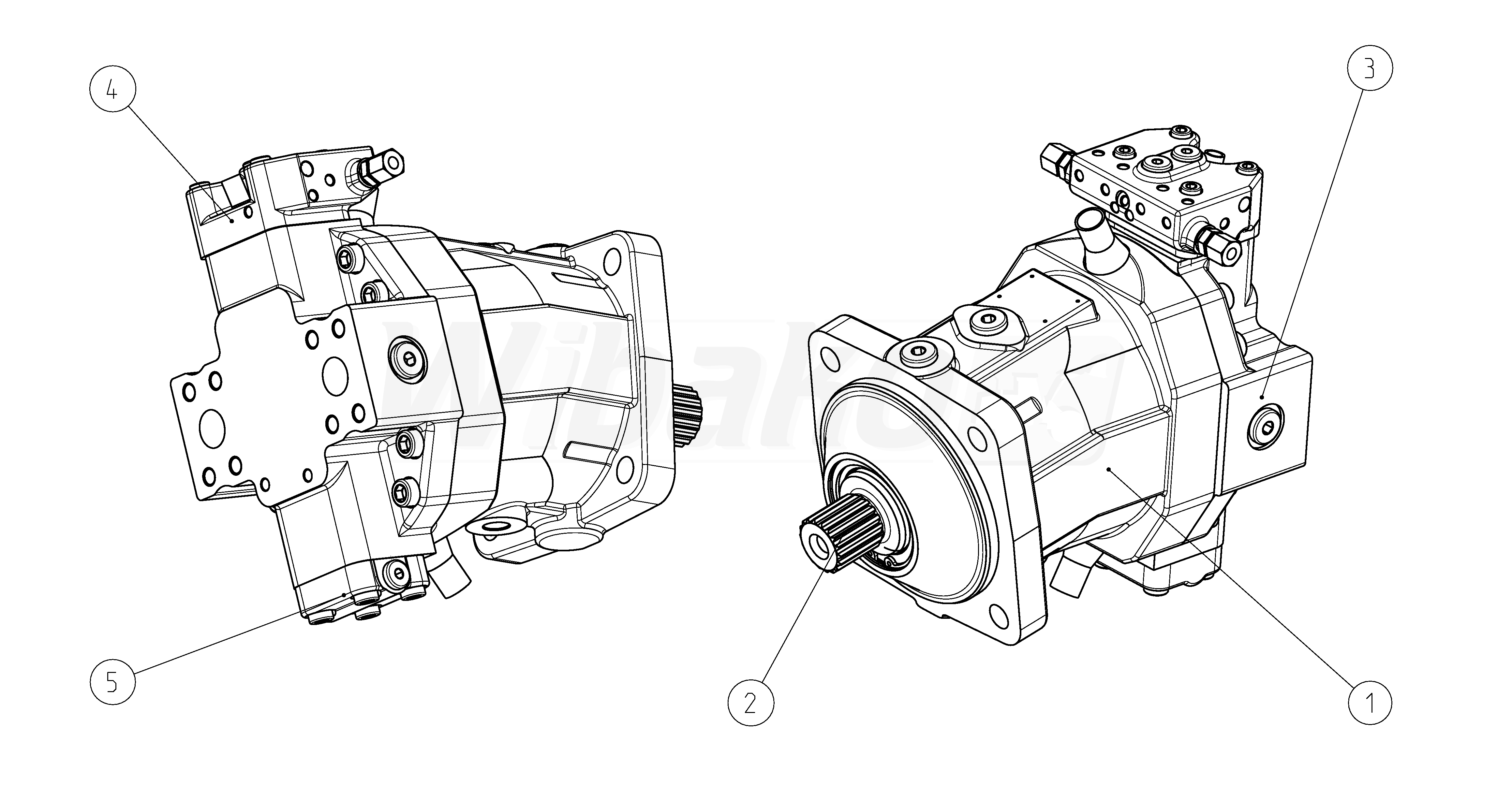

The above diagrams belong to Rexroth www.boschrexroth.com
