A6VM107DA1X/63W-VSB010HB-S (R902067525)

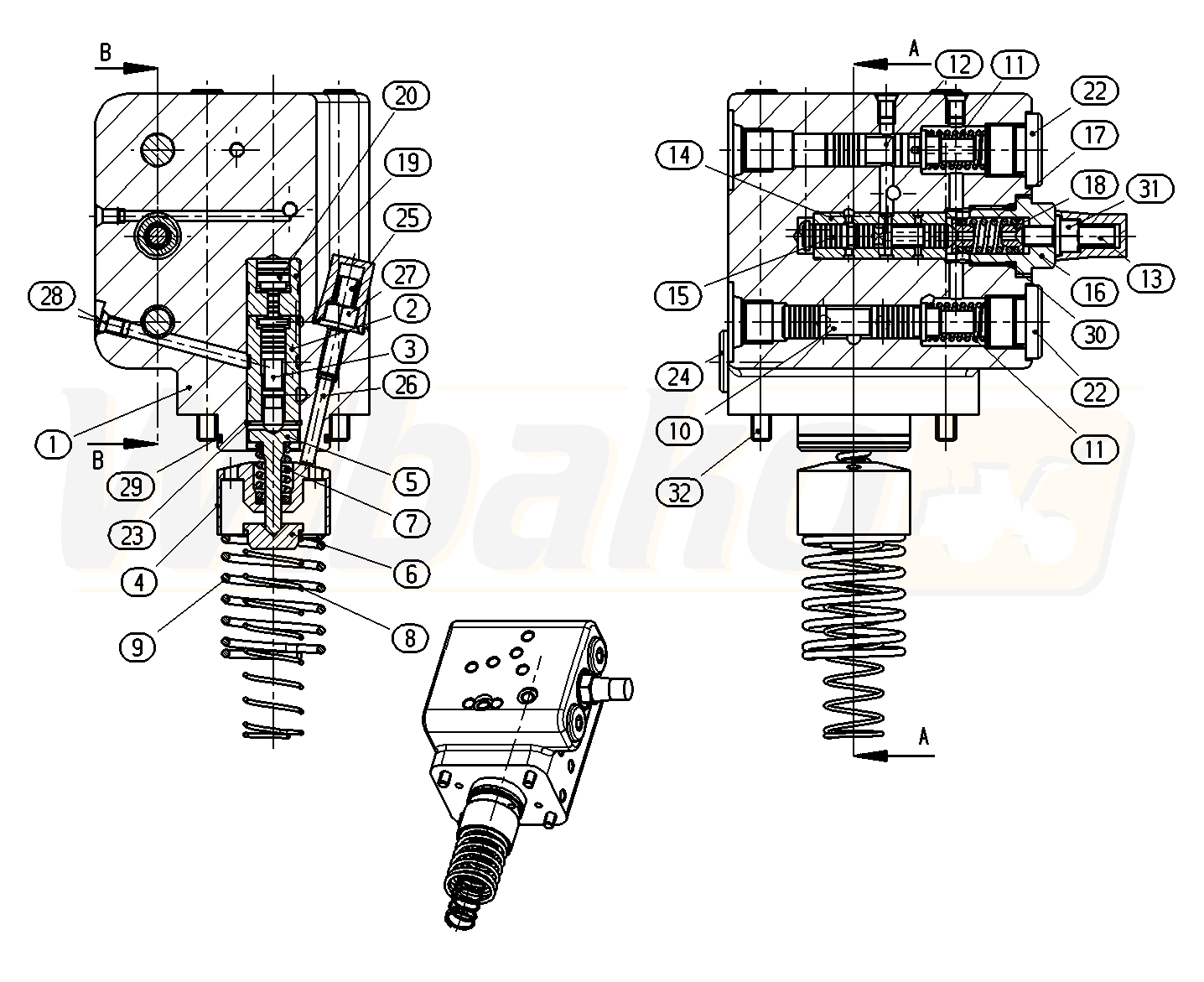

CONTROL PART (174528)

CONTROL PART
(174528)


1

CONTROL HOUSING
(174529)


2

CONTROL SLEEVE
(174530)


3

CONTROL SLEEVE
(174531)


4

ADJUSTING BUSHING
(11664)


5

SPRING DISK
(11341)


6

SPRING DISK
(13736)


7

COMPRESSION SPRING
(11666)


8

COMPRESSION SPRING
(101783)


9

COMPRESSION SPRING
(11667)


10

CONTROL PISTON
(174532)


11

COMPRESSION SPRING
(174533)


12

CONTROL SLEEVE
(174534)


13

SETSCREW
(19138)


14

CONTROL SLEEVE
(174535)


15

CONTROL PISTON
(174536)


16

SCREW PLUG
(174537)


17

COMPRESSION SPRING
(11666)


18

SPRING DISK
(174538)


19

BUSHING
(174539)


20

PISTON
(174540)


22

SCREW PLUG
(15306)


23

RETAINING RING
(11349)


24

SCREW PLUG
(14990)


25

SETSCREW
(11351)


26

STRAIGHT PIN
(13724)


27

SEALING NUT
(10369)


28

DOUBLE BREAK-OFF PLUG
(19008)


29

O-RING
(11668)


30

O-RING
(15628)


31

SEALING NUT
(12455)


32

SOCKET HEAD CAP SCREW
(16698)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
