A6VM107EP1/63W-VXB027FXB-S (R902094507)

Axial piston variable motor A6VM Series 63. Geometric displacement 107 cm3. Control device: proportional control, electric, U = 12 V. Sealing material: FKM (fluoroelastomer). Mounting flange ISO 3019-2, 4-hole. Port plate for working line: SAE working ports A and B lateral, opposite, flushing and boost-pressure valve, mounted. Prepared for HDD speed sensor.

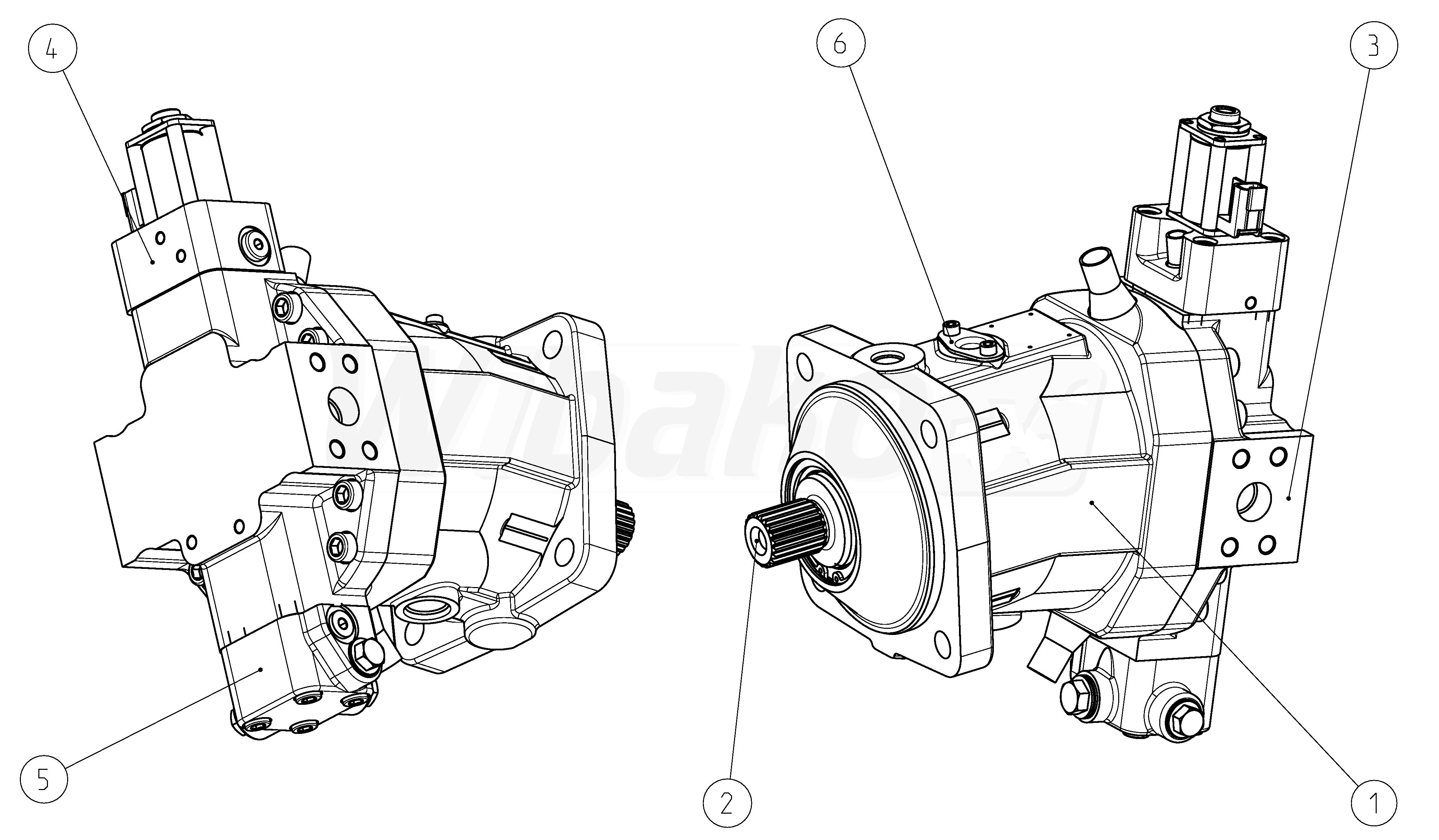

1

HOUSING
(174874)

Group »


2

ROTARY GROUP
(174858)

Group »


3

COVER PLATE
(174875)

Group »


4

CONTROL PART
(174870)

Group »


5

FLUSH/BOOST PRESSURE VALVE
(174117)

Group »


6

FLANGE COVER
(19724)


98

SEAL KIT
(13729)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
