A6VM107EP1/63W-VZB5170TA (R902110087)
Axial piston variable motor A6VM Series 63. Geometric displacement 107 cm3. Control device: proportional control, electric, U = 12 V. Sealing material: FKM (fluoroelastomer). Splined shaft DIN 5480. Mounting flange ISO 3019-2, 4-hole. Port plate for working line: SAE working ports A and B at rear, flushing and boost-pressure valve, mounted. Without speed sensor.

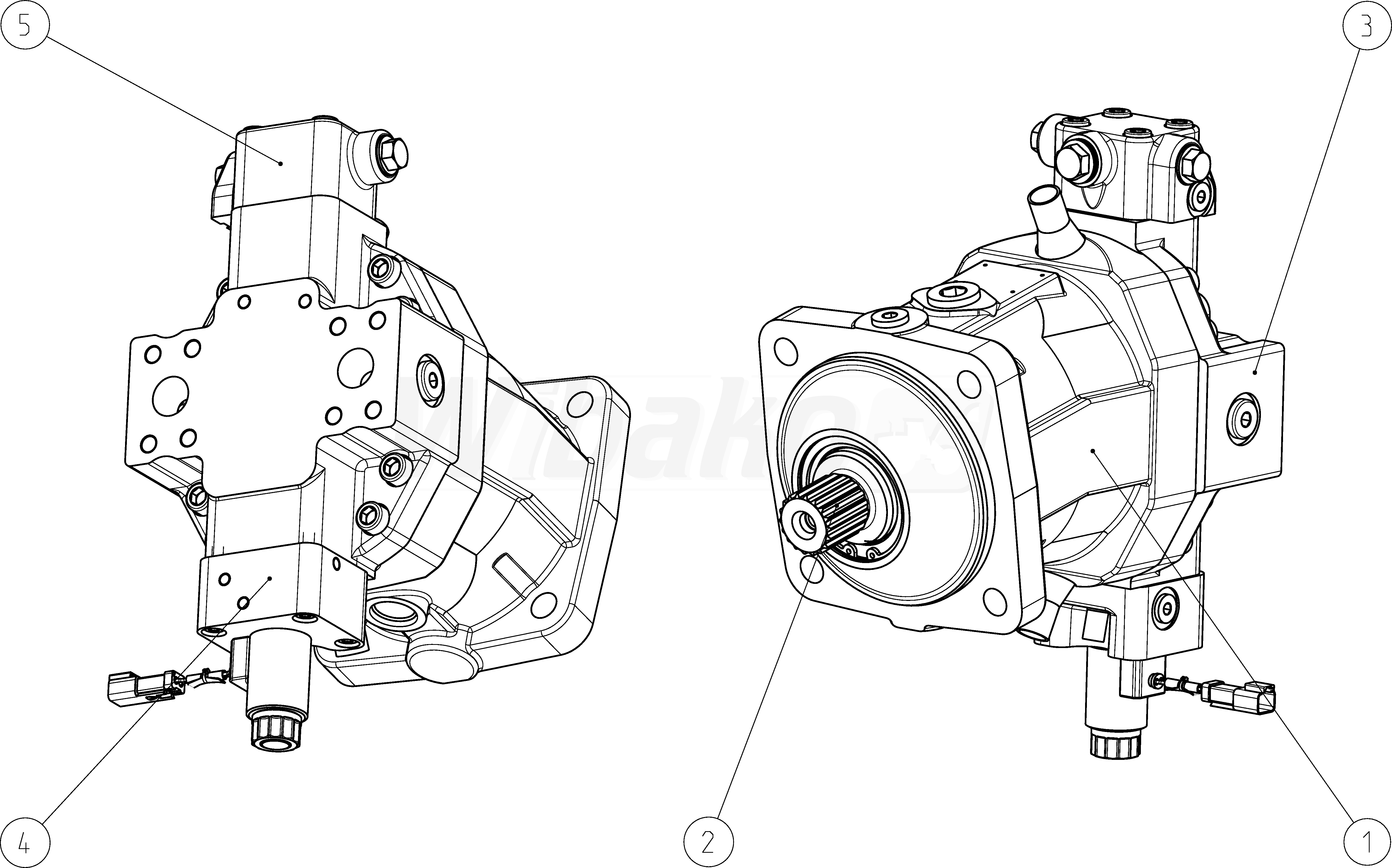

The above diagrams belong to Rexroth www.boschrexroth.com
