A6VM107EP2/60W-PZB017DB-S (R909610100)

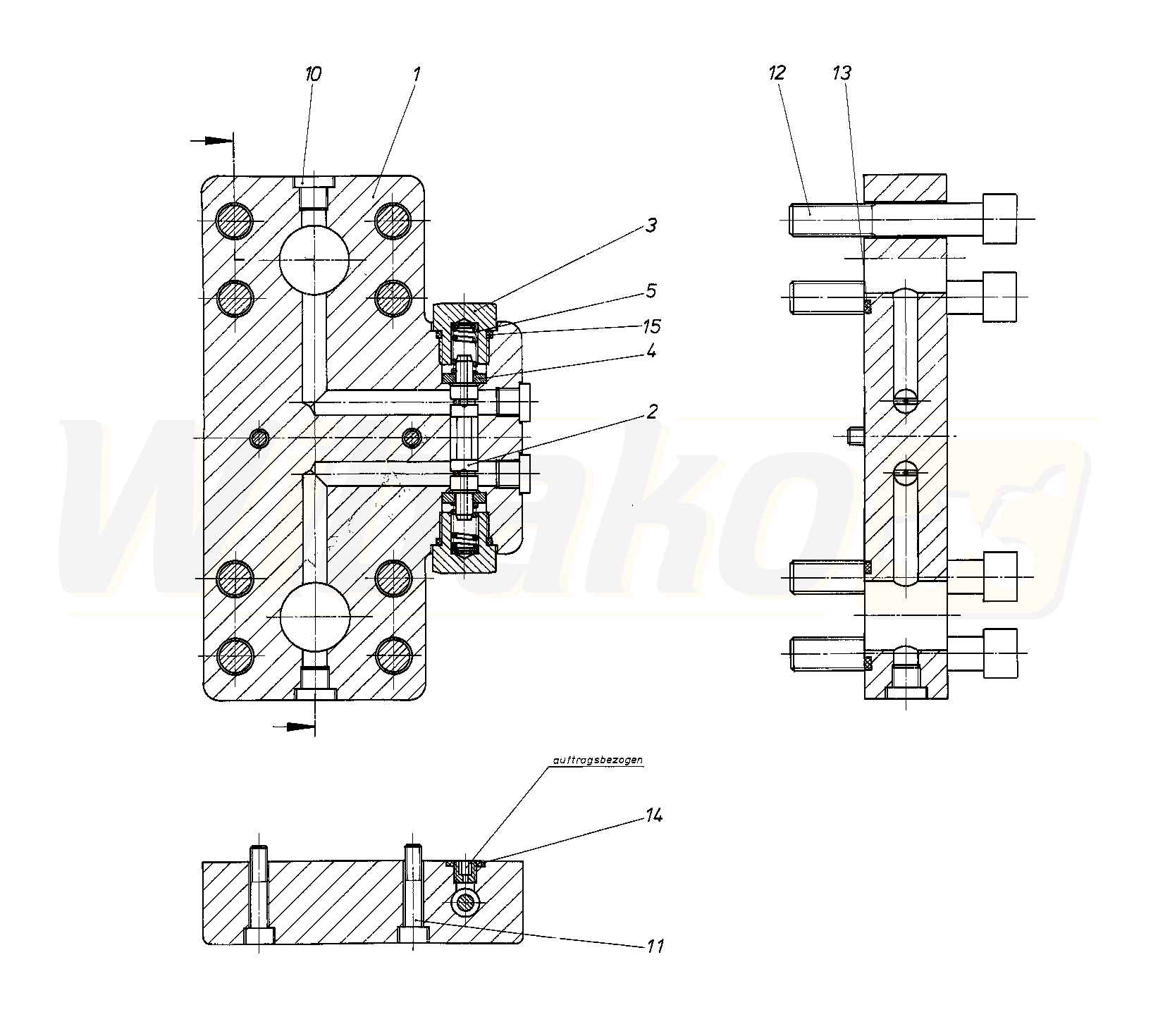

FLUSHING VALVE (175027)

FLUSHING VALVE
(175027)


1

FLUSHING VALVE PLATE
(175029)


2

FLUSHING PISTON
(11710)


3

SCREW PLUG
(11712)


4

WASHER
(11714)


5

COMPRESSION SPRING
(20021)


10

SCREW PLUG
(10220)


11

SOCKET HEAD CAP SCREW
(11717)


12

SOCKET HEAD CAP SCREW
(10337)


13

O-RING
(11552)


14

O-RING
(10332)


15

O-RING
(11818)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
