A6VM107EP2D/60W-PAB026B-S (R909446411)

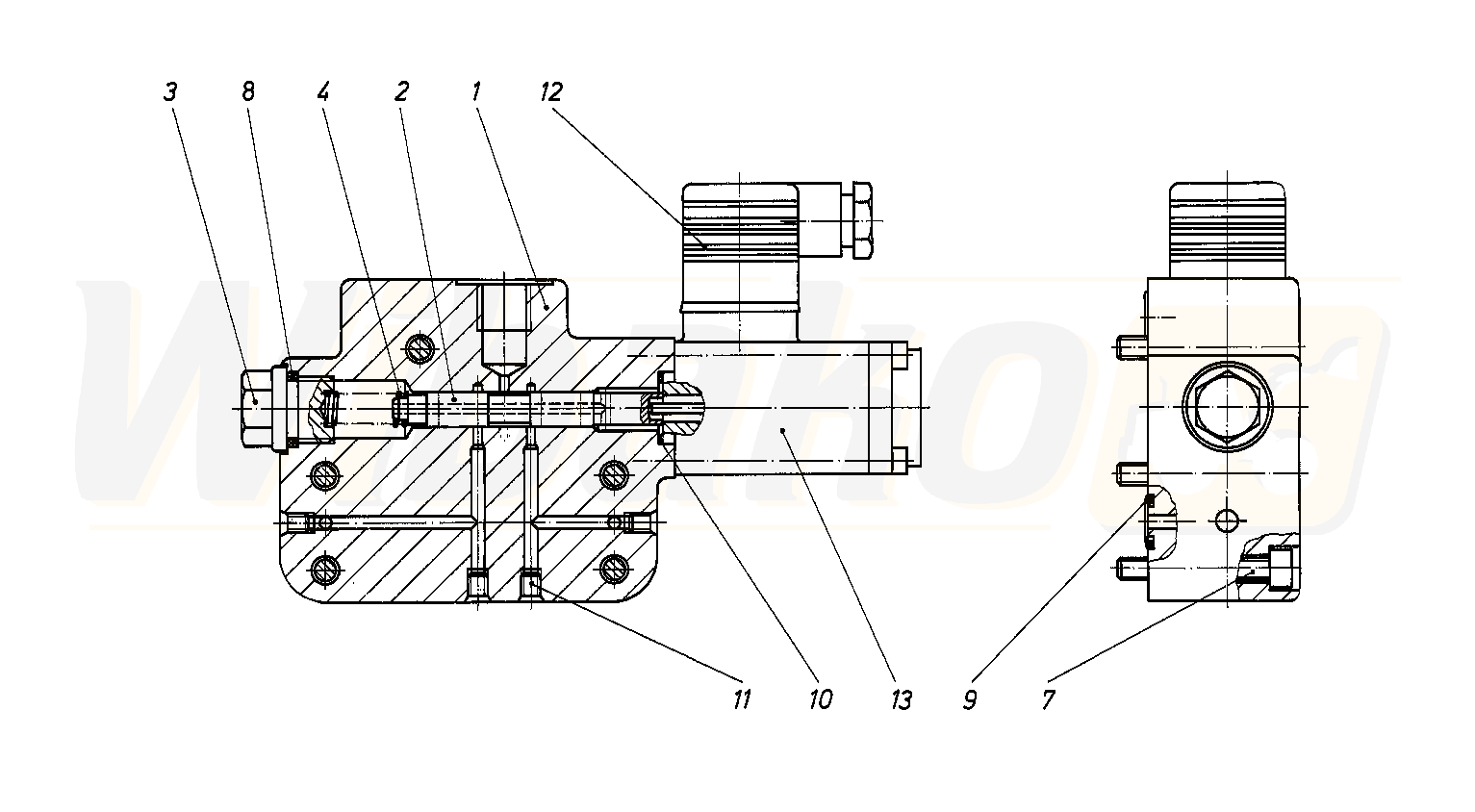

DIRECTIONAL-CONTROL VALVE (175272)

DIRECTIONAL-CONTROL VALVE
(175272)


1

VALVE HOUSING
(175273)


2

SLIDE
(175274)


3

SCREW PLUG
(175275)


4

COMPRESSION SPRING
(17480)


7

SOCKET HEAD CAP SCREW
(14633)


8

O-RING
(11818)


9

O-RING
(10332)


10

O-RING
(10511)


11

DOUBLE BREAK-OFF PLUG
(19008)


12

PLUG-IN CONNECTOR
(10519)


16

SWITCHING SOLENOID
(10792)

Group »



Return

The above diagrams belong to Rexroth www.boschrexroth.com
