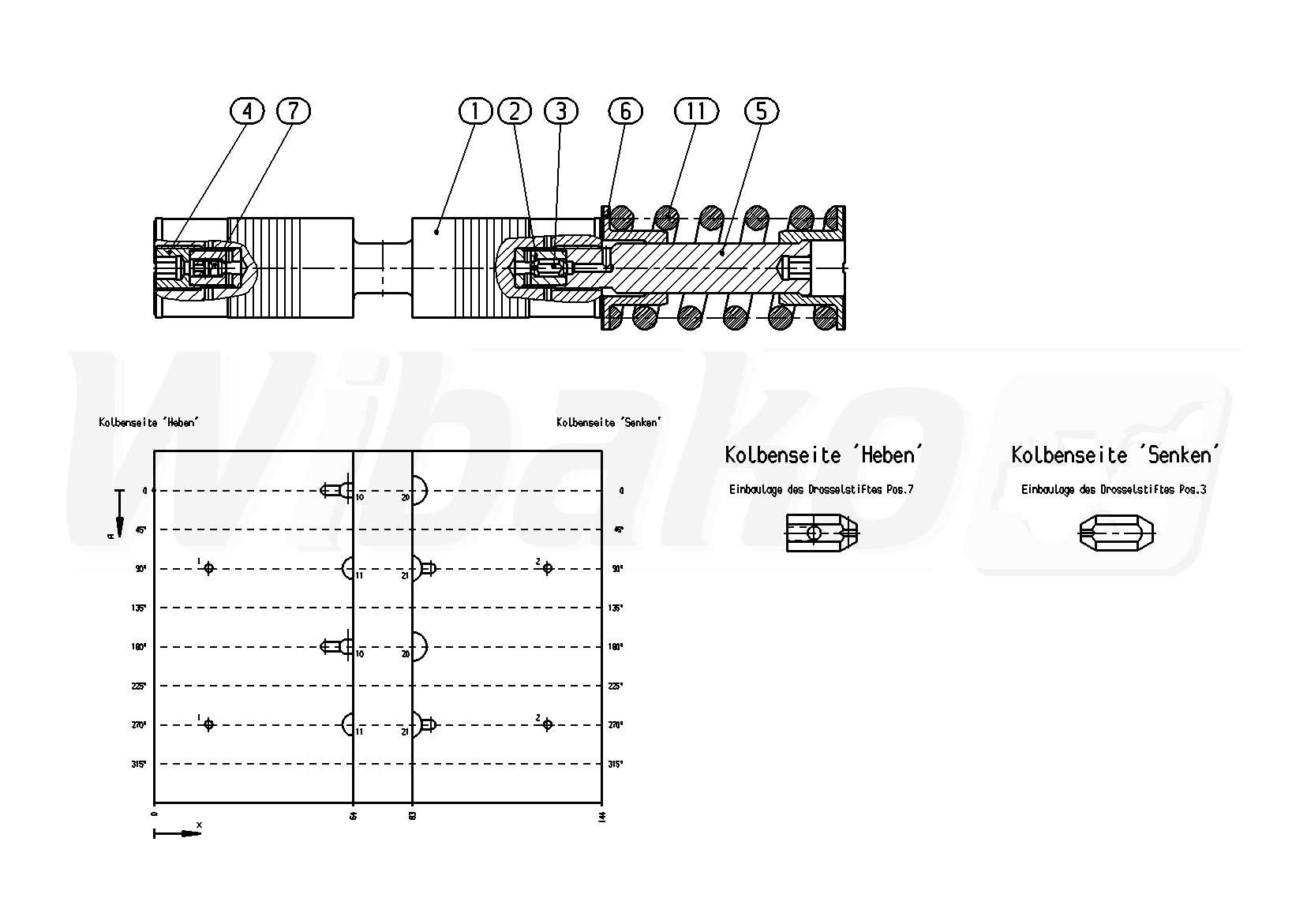

A6VM107EP2D/63W-VAB3880HB-S (R902094941)
BRAKE PISTON (175374)

BRAKE PISTON
(175374)


1

BRAKE PISTON
(169645)


2

VALVE BUSHING
(11697)


3

THROTTLE PIN
(11698)


4

VALVE SCREW
(11699)


5

BOLT
(14502)


6

SPRING DISK
(14503)


7

THROTTLE PIN
(12395)


11

COMPRESSION SPRING
(101842)
