A6VM107EP2D/70W-VAB020HB (R902077482)

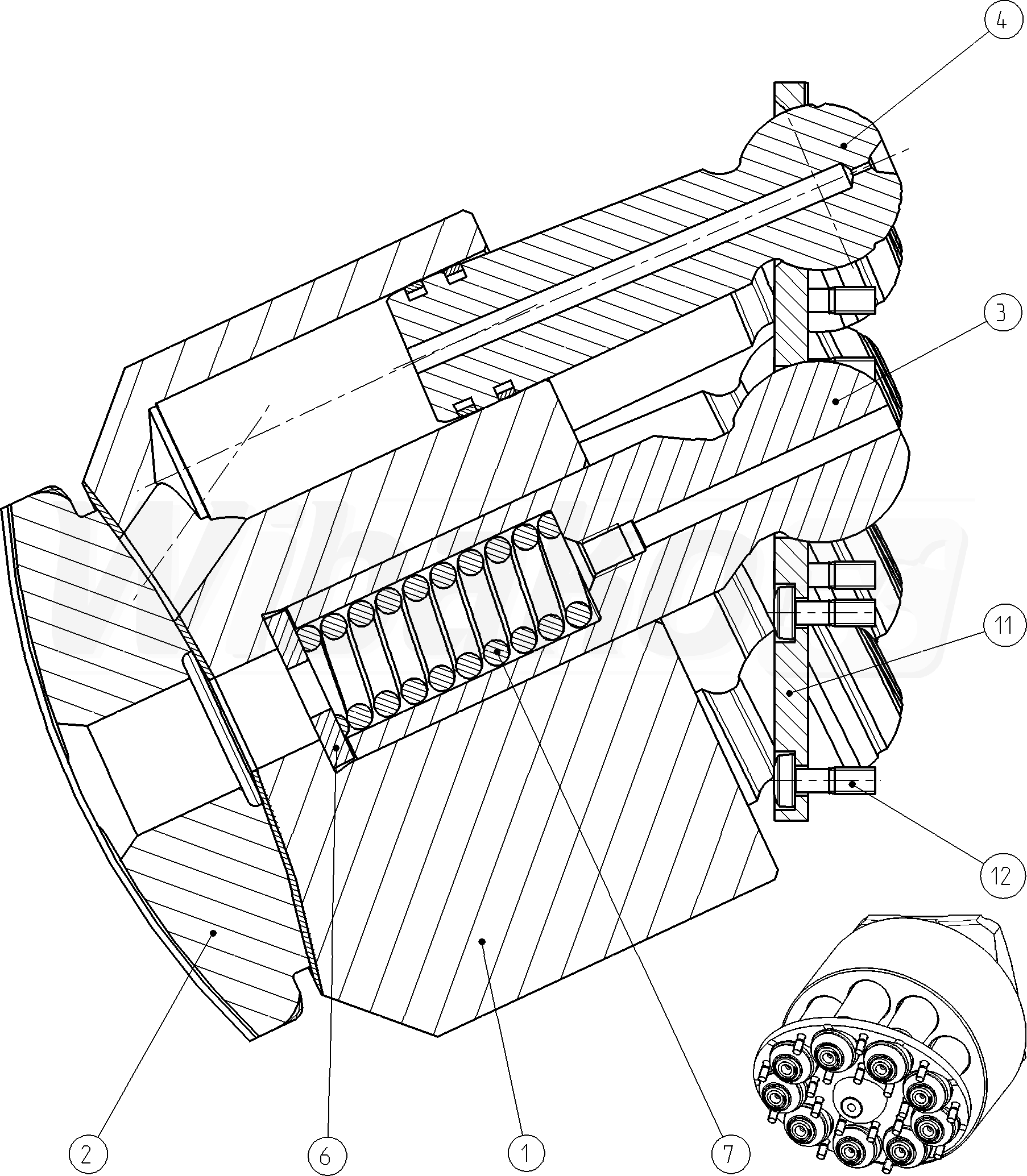

ROTARY GROUP (19122)

ROTARY GROUP
(19122)


1

CYLINDER
(19124)


2

CONTROL LENS
(19125)


3

CENTER PIN
(11627)


4

PISTON
(19126)


6

ADJUSTMENT SHIM
(11628)

Group »


7

COMPRESSION SPRING
(19127)


11

RETAINING PLATE
(19128)


12

PAN-HEAD SCREW
(10931)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
