A6VM107EZ3/63W-VXB0270TB-S (R909604510)
Axial piston variable motor A6VM Series 63. Geometric displacement 107 cm3. Control device: two-point control, electric, U = 12 V. Sealing material: FKM (fluoroelastomer). Mounting flange ISO 3019-2, 4-hole. Port plate for working line: SAE working ports A and B lateral, opposite, flushing and boost-pressure valve, mounted. Without speed sensor.

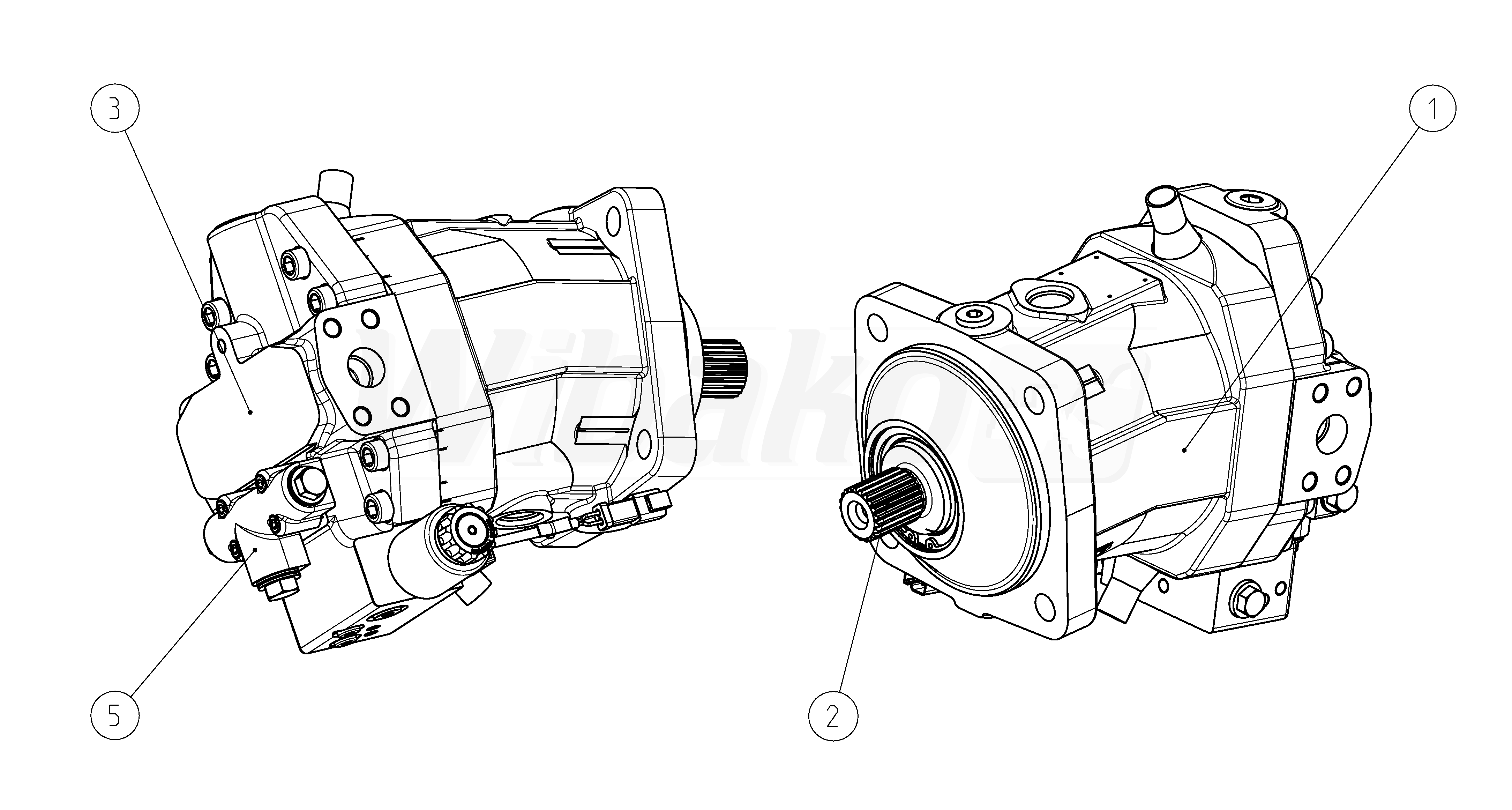

The above diagrams belong to Rexroth www.boschrexroth.com
