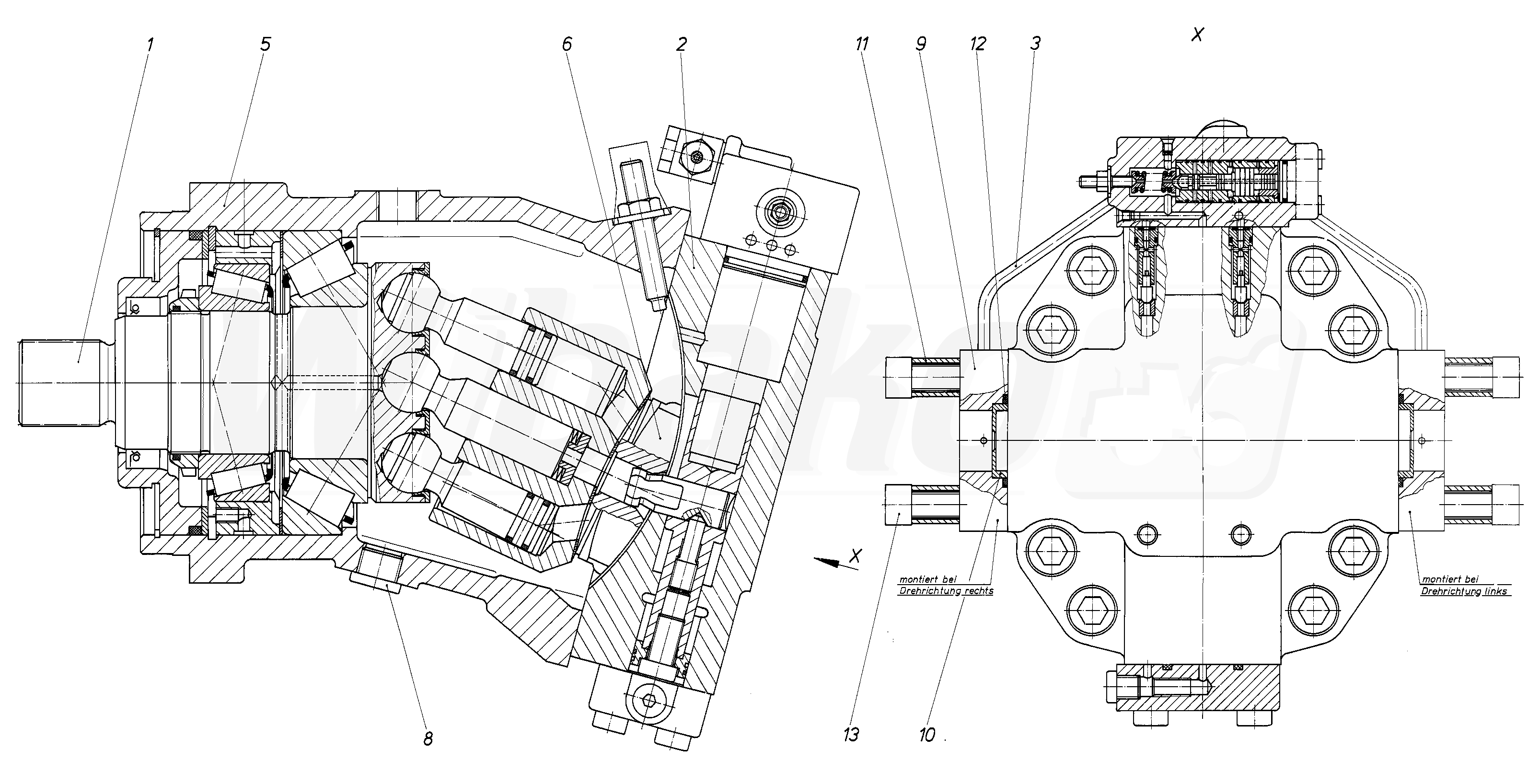

A6VM107FOE/62L-VZB020B (R909448210)

1

ROTARY GROUP
(175296)

Group »


2

CONTROL
(175789)

Group »


3

HYDRAULIC LINE
(175771)

Group »


5

HOUSING
(174371)


6

CONTROL LENS
(11626)


8

SCREW PLUG
(11292)


9

ORIFICE FLANGE
(16575)


10

ORIFICE
(175772)


11

DISTANCE PIPE
(16577)


12

O-RING
(14499)


13

SOCKET HEAD CAP SCREW
(11334)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
