A6VM107HA1/60W-NZB370A (R909441059)

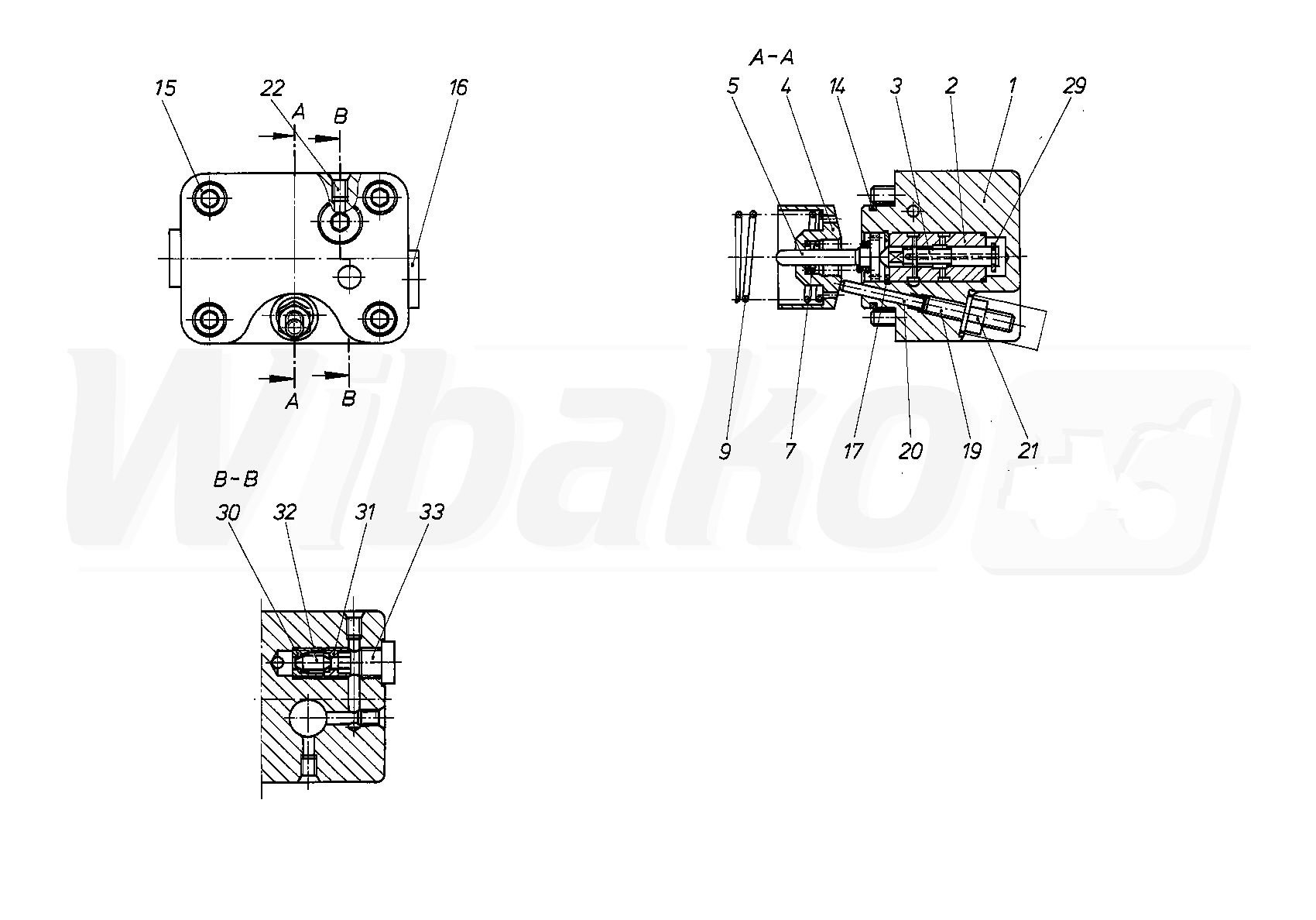

CONTROL PART (175833)

CONTROL PART
(175833)


1

CONTROL HOUSING
(175840)


2

CONTROL SLEEVE
(11662)


3

CONTROL PISTON
(14116)


4

ADJUSTING BUSHING
(15138)


5

SPRING DISK
(11665)


7

COMPRESSION SPRING
(13723)


9

COMPRESSION SPRING
(15139)


14

O-RING
(11969)


15

SOCKET HEAD CAP SCREW
(10340)


16

SCREW PLUG
(10015)


17

RETAINING RING
(11349)


19

SETSCREW
(11351)


20

STRAIGHT PIN
(11352)


21

SEALING NUT
(10369)


22

DOUBLE BREAK-OFF PLUG
(19008)


29

LOCKING WASHER
(11671)


30

THROTTLE SCREW
(12382)


31

THROTTLE SCREW
(12384)


32

THROTTLE PIN
(12387)


33

SCREW PLUG
(10220)
