A6VM107HA1/62W-NZB380A (R909447767)

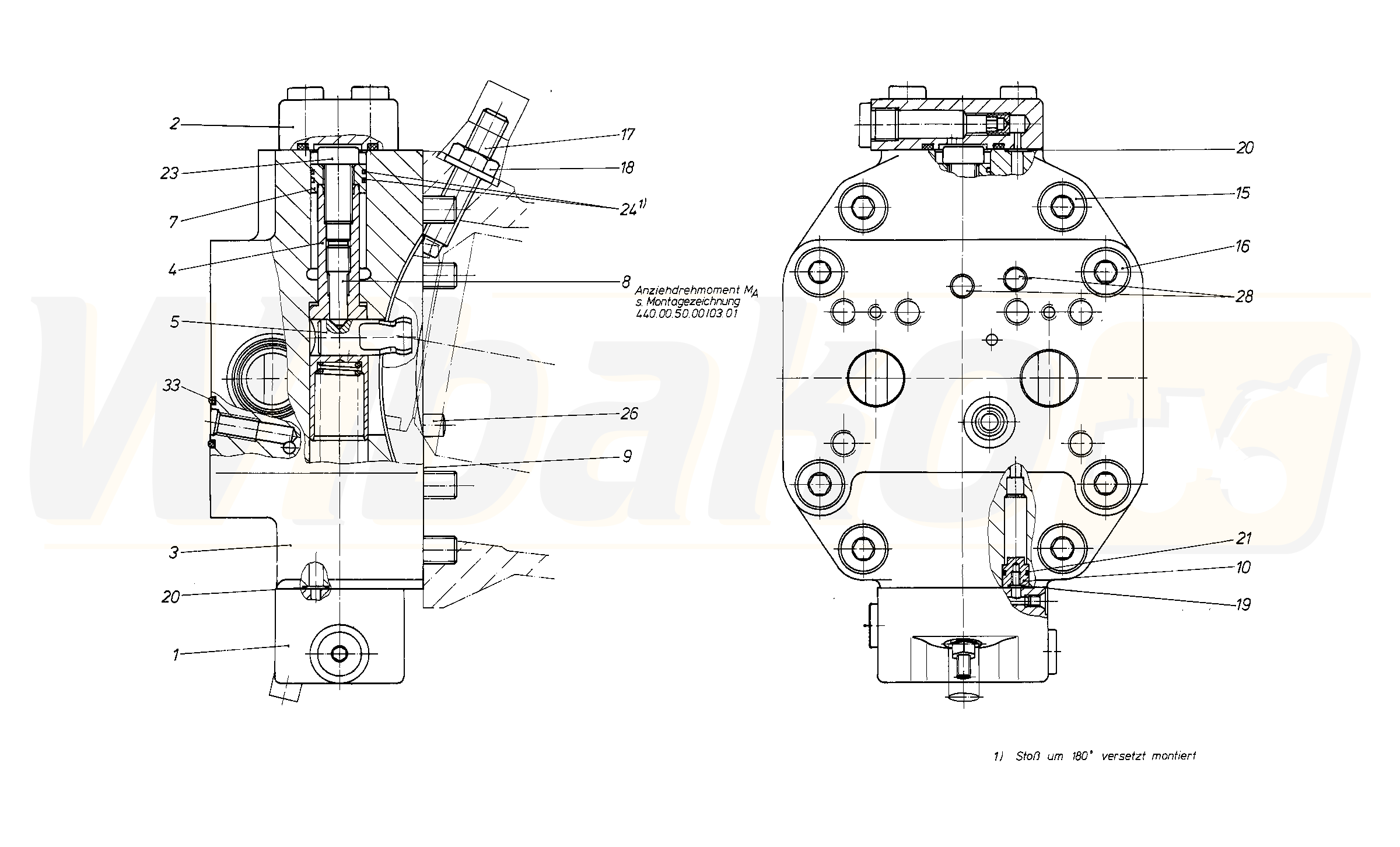

CONTROL (175907)

CONTROL
(175907)


1

CONTROL PART
(167808)

Group »


2

COVER
(175908)

Group »


3

COVER PLATE
(175909)


4

POSITIONING PISTON
(174443)


5

POSITIONING STUD
(11655)


7

PISTON
(11656)


8

SETSCREW
(12904)


9

SEAL
(175910)


10

PLUG
(15136)


15

SOCKET HEAD CAP SCREW
(10346)


16

SOCKET HEAD CAP SCREW
(11657)


17

SETSCREW
(11296)

Group »


18

SEALING NUT
(11057)


19

O-RING
(13842)


20

O-RING
(11087)


21

O-RING
(10227)


22

BACKUP RING
(13843)


23

SOCKET HEAD CAP SCREW
(11336)


26

STRAIGHT PIN
(10223)


27

DOUBLE BREAK-OFF PLUG
(18990)


28

DOUBLE BREAK-OFF PLUG
(19009)


33

O-RING
(10771)


34

SCREW PLUG
(10090)
