A6VM107HA1/63W-VZB220A-S (R909611185)

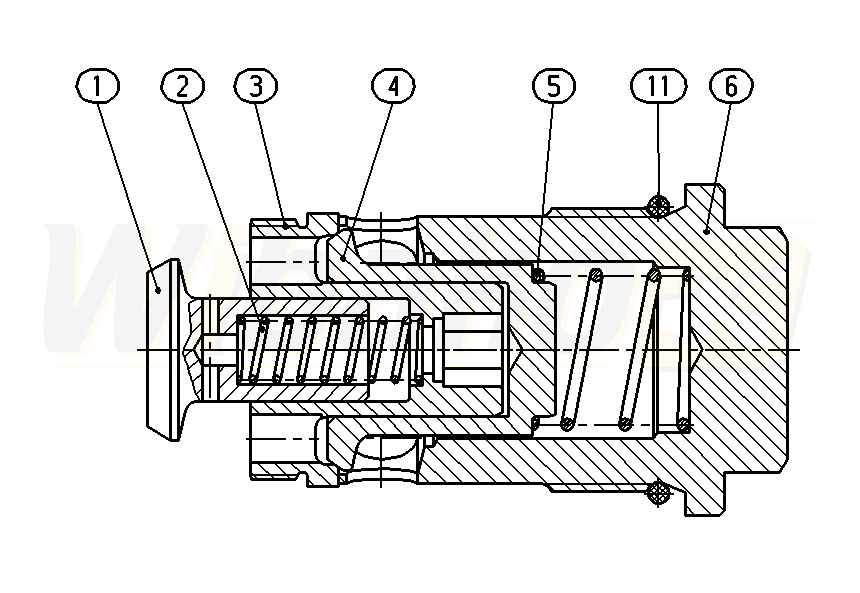

VALVE (175945)

VALVE
(175945)


1

VALVE CONE
(16400)


2

COMPRESSION SPRING
(16401)


3

VALVE SEAT
(175946)


4

VALVE CONE
(16403)


5

COMPRESSION SPRING
(16404)


6

SCREW PLUG
(175947)


11

O-RING
(16406)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
