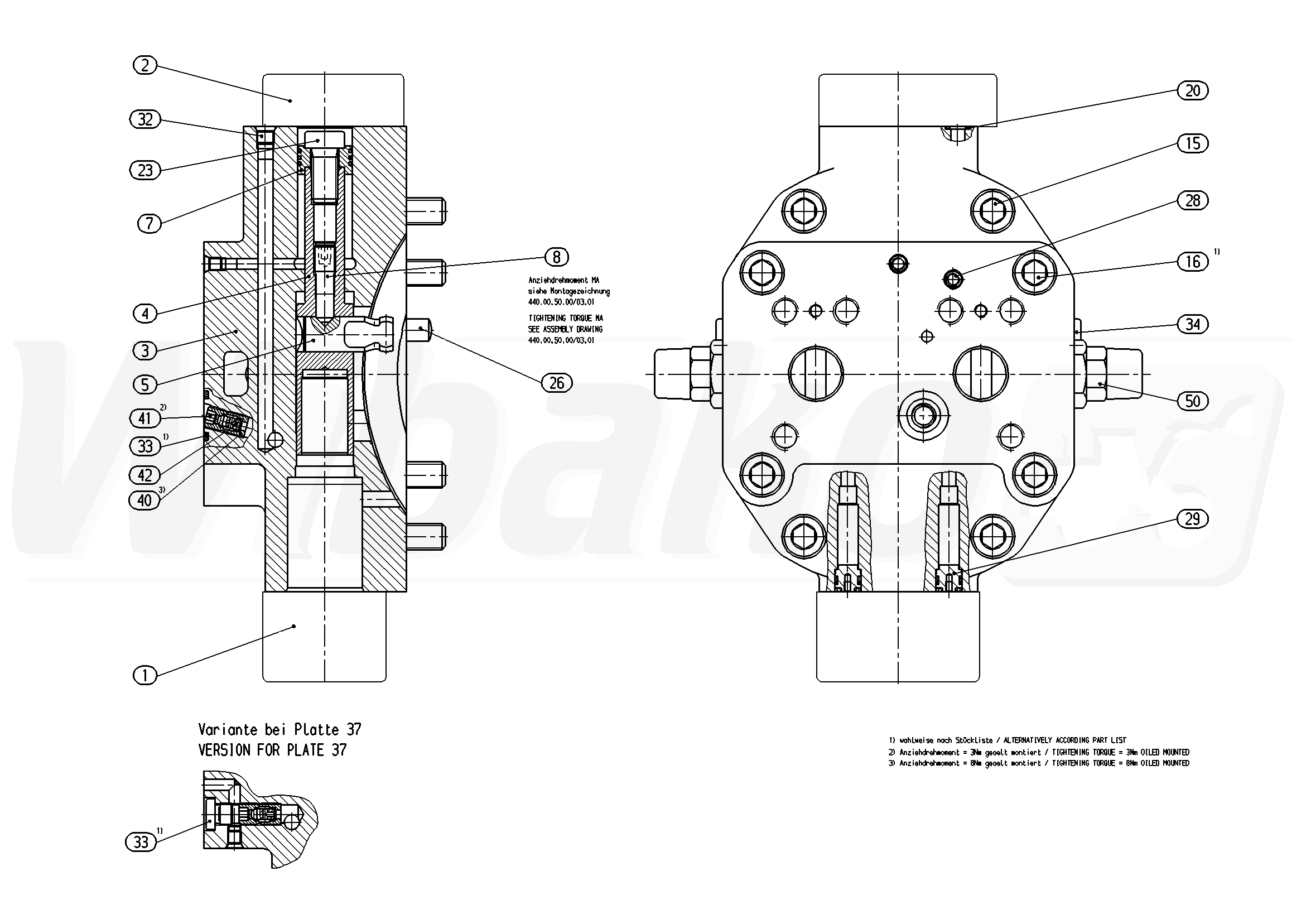

A6VM107HA1T/63W-VZB370A-S (R902000041)
CONTROL (176409)

CONTROL
(176409)


1

CONTROL PART
(176410)

Group »


2

COVER
(11652)

Group »


3

COVER PLATE
(11653)


4

POSITIONING PISTON
(11654)


5

POSITIONING STUD
(11655)


7

PISTON
(11656)


8

SETSCREW
(11331)


15

SOCKET HEAD CAP SCREW
(10346)


16

SOCKET HEAD CAP SCREW
(11657)


20

O-RING
(11335)


23

SOCKET HEAD CAP SCREW
(11336)


26

STRAIGHT PIN
(10223)


28

DOUBLE BREAK-OFF PLUG
(18990)


29

PLUG
(11658)


32

DOUBLE BREAK-OFF PLUG
(19009)


33

SCREW PLUG
(11659)


34

SCREW PLUG
(11292)


40

THROTTLE SCREW
(12382)


41

THROTTLE SCREW
(12384)


42

VALVE PIN
(13502)


50

DELIVERY-VALVE ASSEMBLY
(11660)

Group »



Return

The above diagrams belong to Rexroth www.boschrexroth.com
