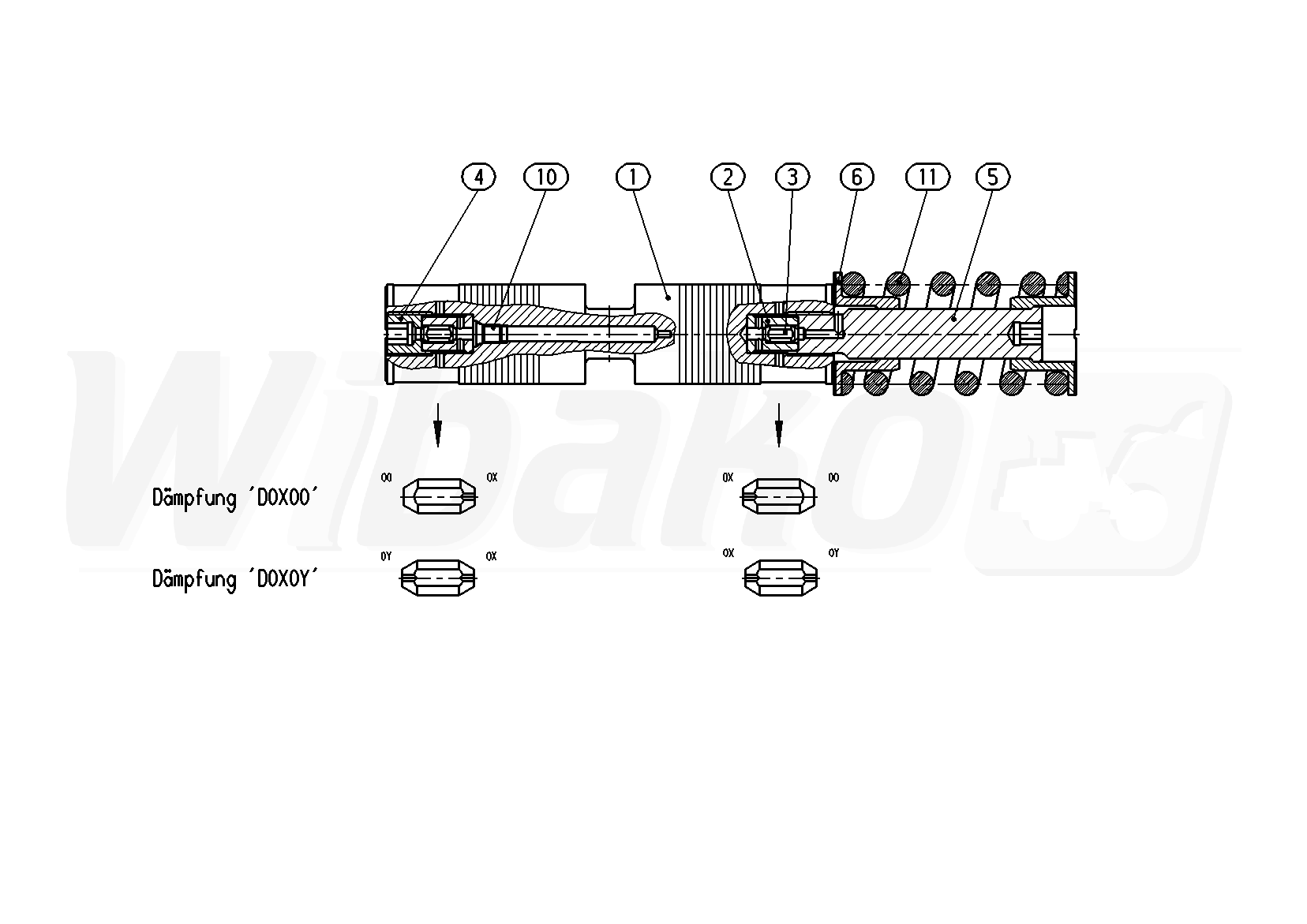

A6VM107HA1T/63W-VZB380A-K (R902088774)
BRAKE PISTON (14485)

BRAKE PISTON
(14485)


1

BRAKE PISTON
(14500)


2

VALVE BUSHING
(11697)


3

THROTTLE PIN
(14501)


4

VALVE SCREW
(11699)


5

BOLT
(14502)


6

SPRING DISK
(14503)


10

DOUBLE BREAK-OFF PLUG
(18990)


11

COMPRESSION SPRING
(14504)



Return
