A6VM107HA1TB/63W-VZB370A-SK (R902045006)

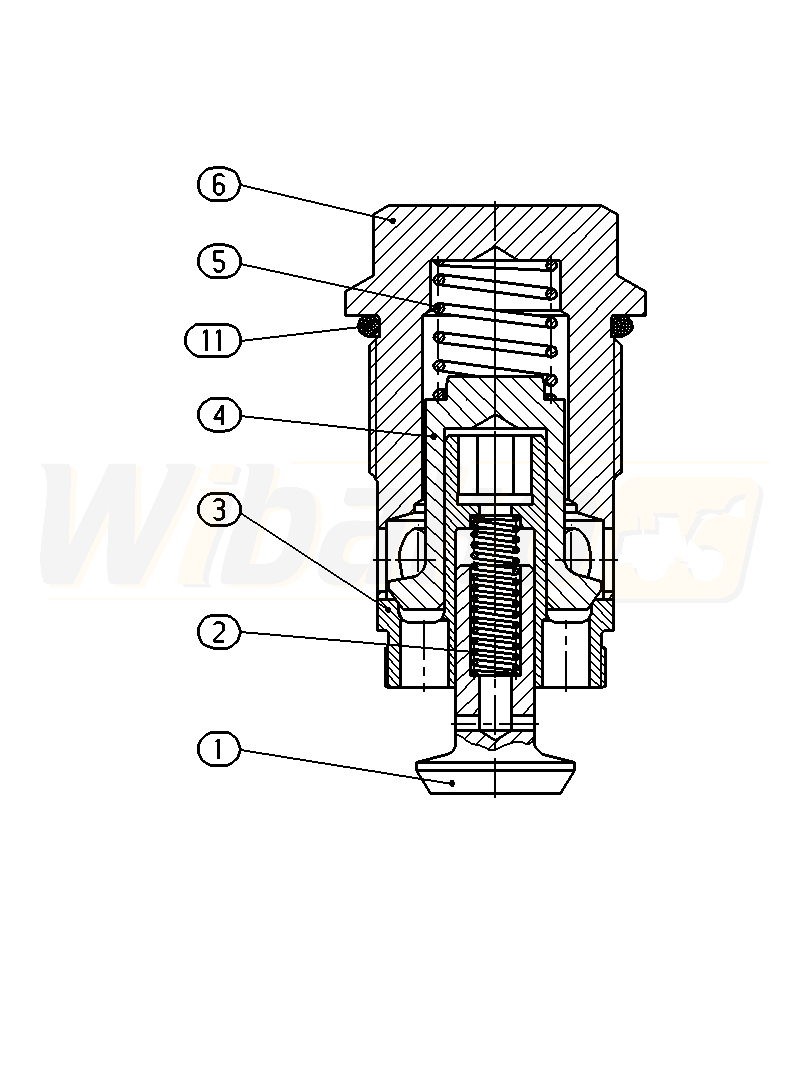

VALVE (176491)

VALVE
(176491)


1

VALVE CONE
(17986)


2

COMPRESSION SPRING
(17987)


3

VALVE SEAT
(17988)


4

VALVE CONE
(17989)


5

COMPRESSION SPRING
(17990)


6

SCREW PLUG
(176494)


11

O-RING
(11692)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
